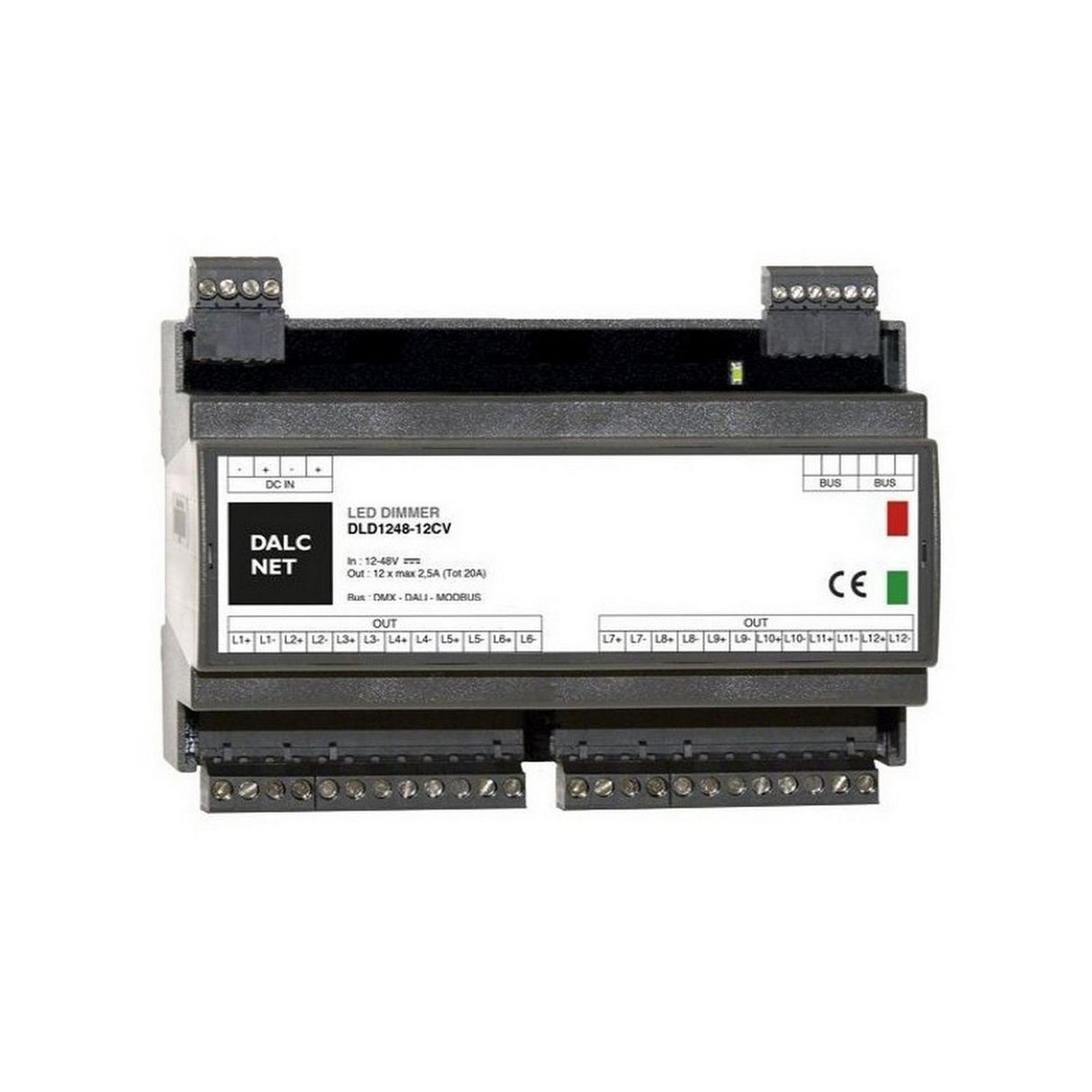

DIN-rail 12-Channel Constant Voltage LED Dimmer with DMX ~ Model DLD1248-12CV-DMX

Controller only ~ power supply, LED's and all other accessories are sold separately

Description

The DLD1248-12CV-DMX is a 12-channel constant voltage LED dimmer with DMX control capabilities, designed by Dalcnet.

Designed for R-L-C loads, this LED dimmer controller boasts a typical efficiency greater than 95%. It offers advanced dimming capabilities with a dim to warm feature that adjusts the correlated color temperature (CCT) to warm white with decreasing light intensity, creating a cozy ambiance. In RGB and RGBW modes, it allows the grouping and independent management of colors. Advanced color control capabilities are available.

With a minimum brightness level of 0.1% and dim to dark capability, the DLD1248-12CV-DMX offers exceptional control over light output. It utilizes D-PWM modulation with adjustable frequencies of 300, 600, or 1200 Hz. Users can select from linear, quadratic, or exponential output curves to suit their lighting needs.

Additional features include soft start and stop, soft dimming regulation, and an extended temperature range for reliable performance in various environments. The DLD1248-12CV-DMX comes with a 5-year warranty, ensuring long-term reliability and peace of mind for professional lighting applications.

General Specifications

• Model: DLD1248-12CV-DMX
• Voltage: 12-48V DC
• Max output current: 2A/channel; 20A total
• Output channels: 12
• Bus: DMX512-A+RDM
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• D-PWM frequency: 300 / 600 / 1200 Hz
• D-PWM resolution: 16-bit
• Output curve: Linear / Quadratic / Exponential
• Working temperature range: -40°C - +60°C (-40°F - 140°F)

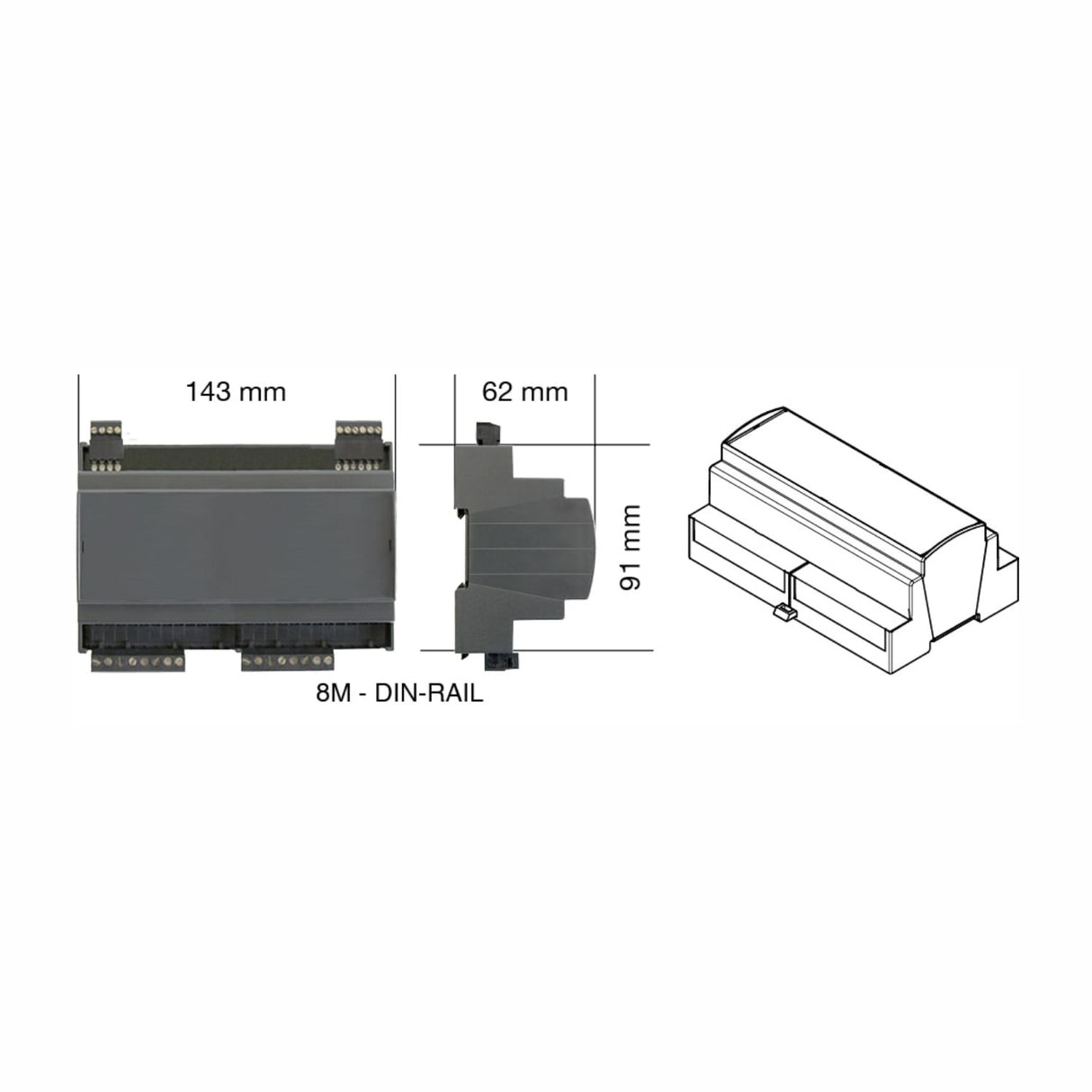

• Dimensions: 143 x 91 x 62 mm (1.69" x 3.58" x 2.44")
• Warranty: 5 years

Downloads

• DLD1248-12CV-DMX cut sheet
