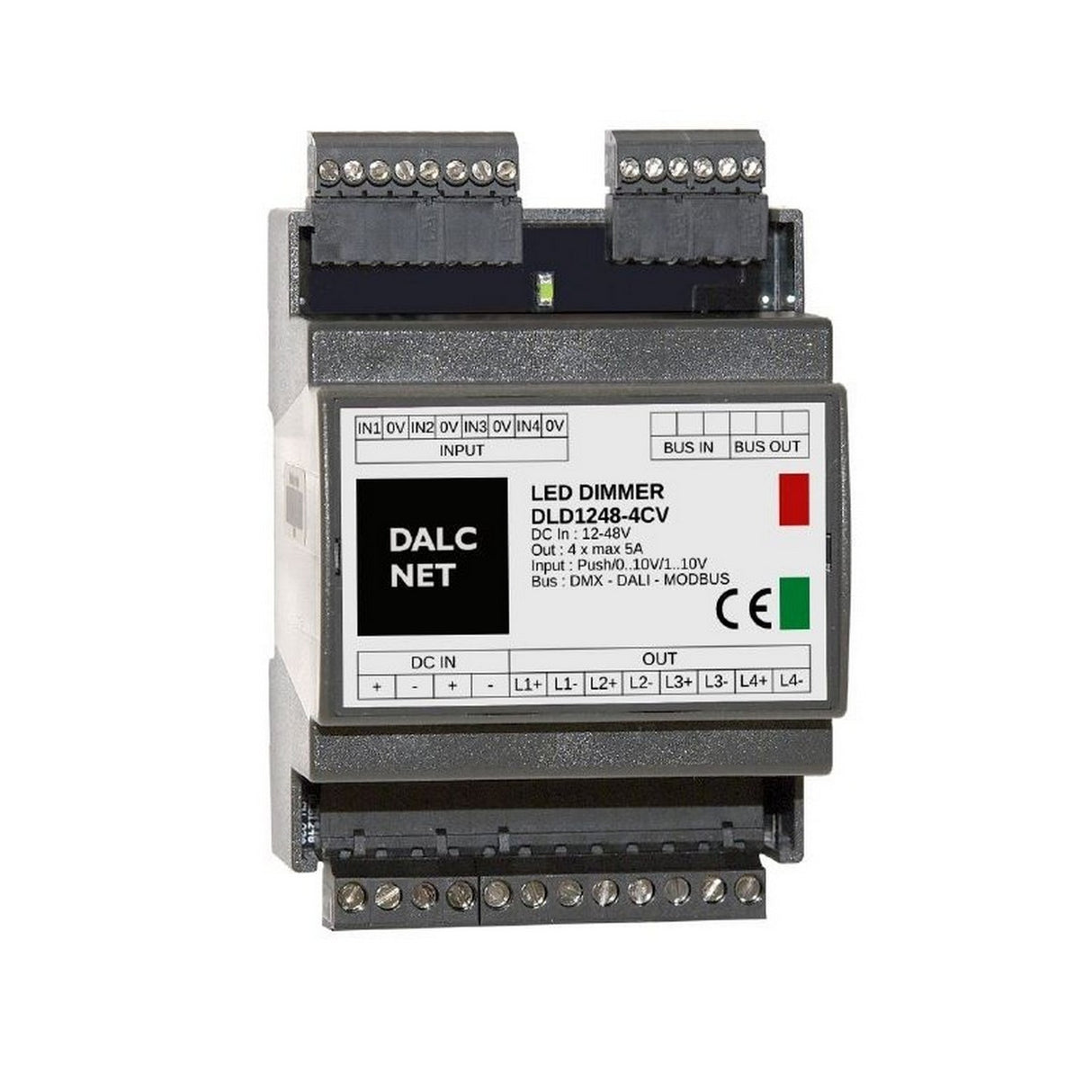

DIN-rail 4-Channel Constant Voltage LED Dimmer with DMX ~ Model DLD1248-4CV-DMX

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

4-Channel Constant Voltage LED Dimmer with DMX is a professional-grade dimming solution designed by Dalcnet. This LED dimmer is DIN-rail mounted for installation in standard electrical distribution boxes.

Experience precise brightness adjustment with the ability to dim your lights all the way down to an impressive minimum brightness of 0.1% (or 1% in push mode). This wide dimming range allows for creating various lighting moods, from subtle ambiance to dramatic effects.

Equipped with four output channels, the DLD1248-4CV-DMX LED Dimmer enables simultaneous control of multiple lighting zones or fixtures. Choose from optimized linear, quadratic, or exponential output curves, ensuring smooth and accurate dimming tailored to your specific needs.

The dimmer also features a master-slave function, allowing you to synchronize multiple dimmers for synchronized lighting effects. Additionally, the D-PWM modulation with selectable frequencies of 300, 600, or 1200 Hz ensures flicker-free operation, delivering high-quality lighting performance in any application.

General specifications

• Model: DLD1248-4CV-DMX
• Input Range: 12-48V DC

• Max Output Power: 4x 5A
• Channels Output: 4-Channel
• Bus Command: DMX512

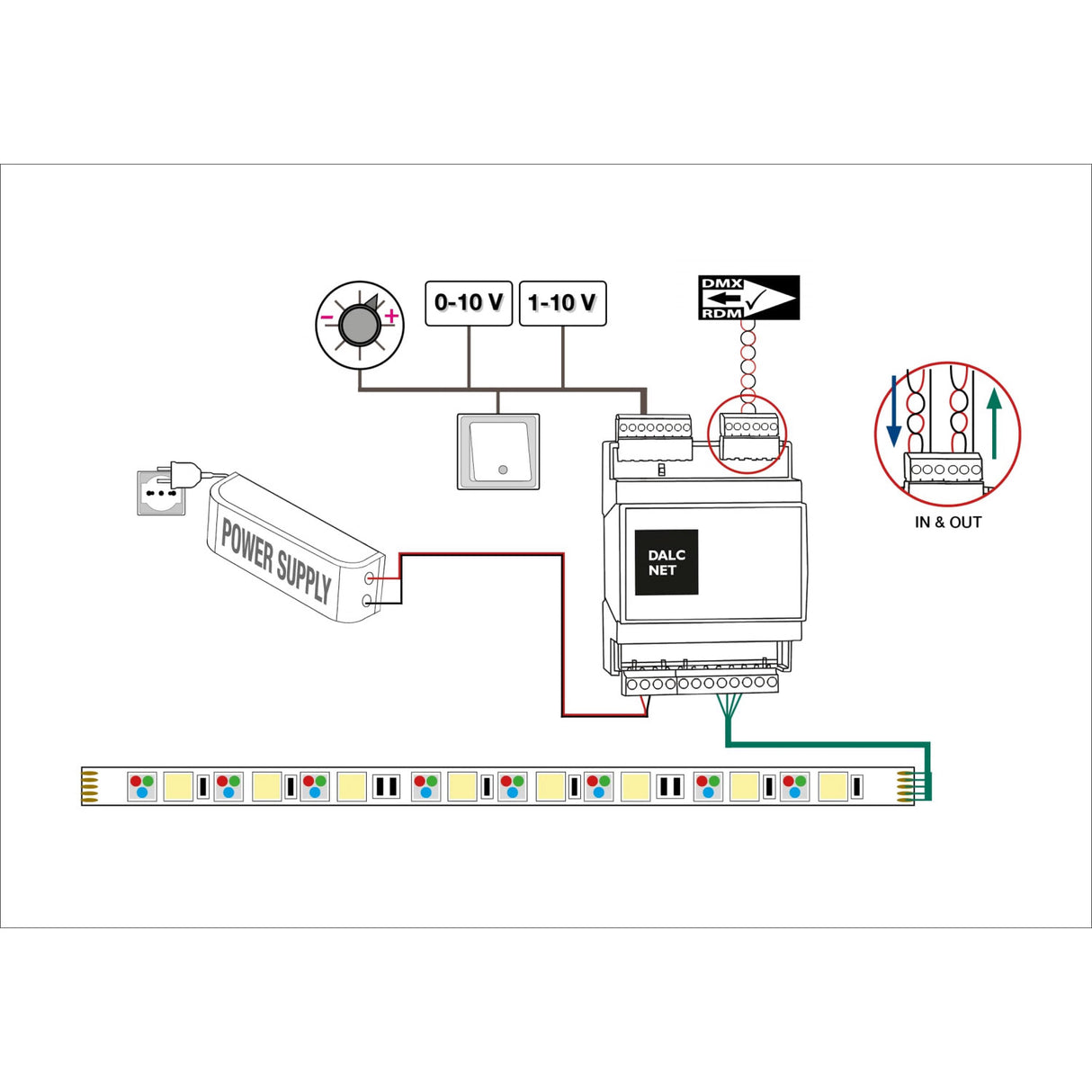

• Local Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V and Potentiometer 10K Ohm
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• Adjusting the brightness up to completed off (Dim to Dark)
• Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
• Adjusting output curve: Linear / Quadratic / Exponential
• Working Temperature Range: -40/+60°C

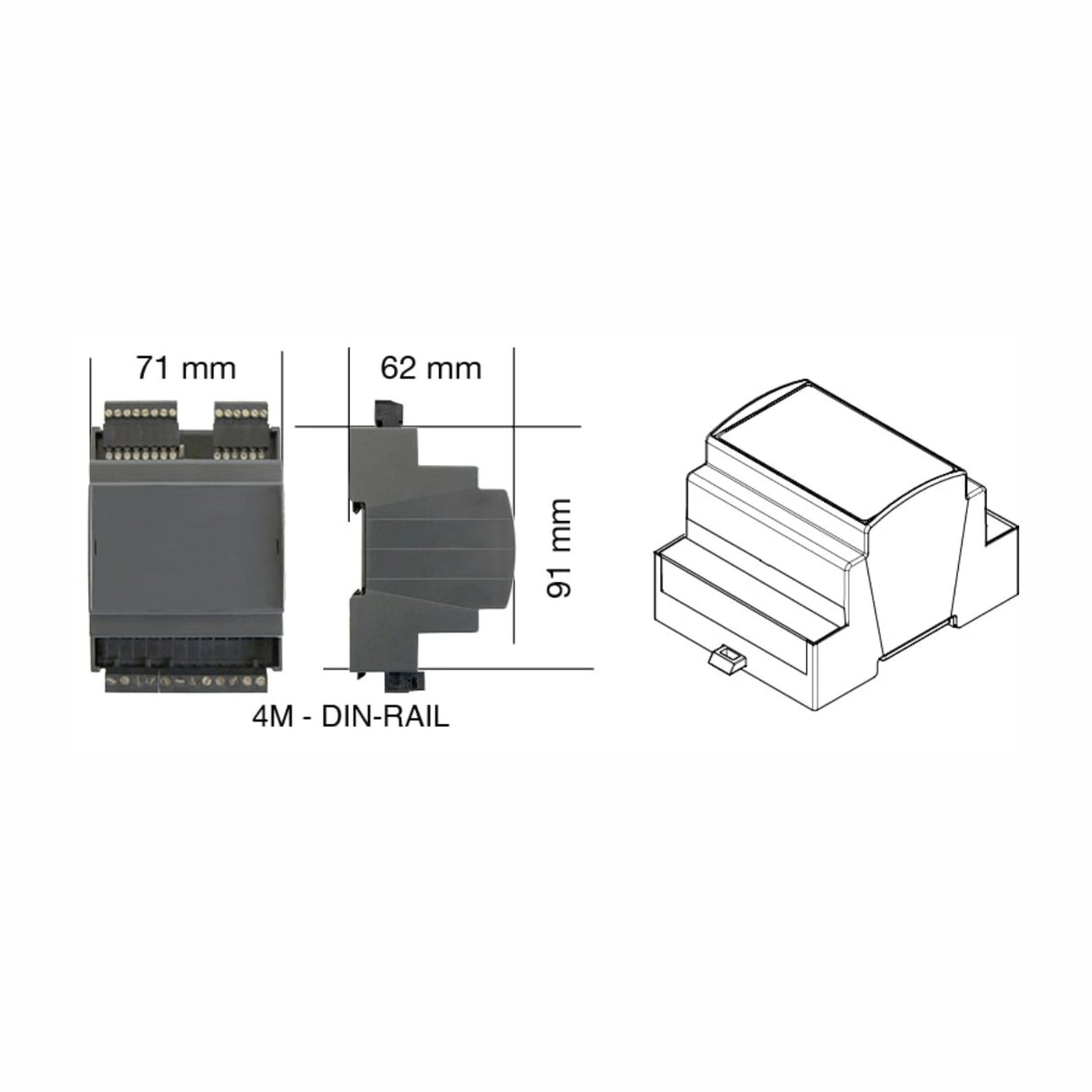

• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")
• Warranty: 5 years

Downloads

• DLD1248-4CV-DMX cut sheet
