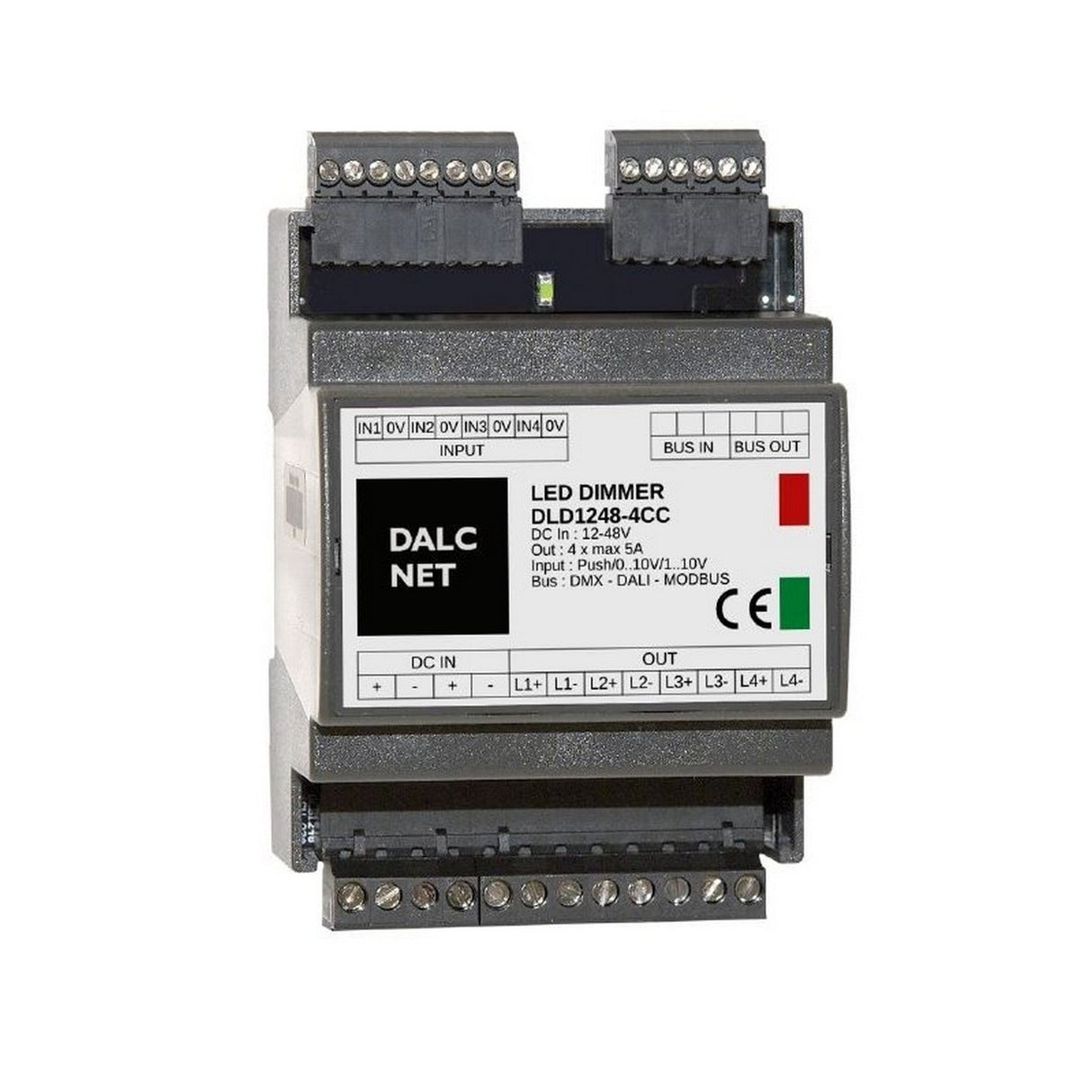

DIN-rail 4-Channel Constant Current LED Dimmer with DMX ~ Model DLD1248-4CC-DMX

LED dimmer only ~ power supply, LEDs and all other accessories are sold separately

Description

4-Channel Constant Current LED Dimmer with DMX ~ DLD1248-4CC-DMX is a high-performance DC-DC Constant Voltage (CC) dimming solution designed for professional use. This dimmer offers exceptional control and versatility for your LED lighting system.

This LED dimmer is DIN-rail mounted for installation in standard electrical distribution boxes. With four channels, it allows you to control multiple LED fixtures simultaneously, providing dynamic lighting possibilities.

The DLD1248-4CC-DMX LED Dimmer offers basic protection against dust and accidental contact. It ensures the durability and longevity of the dimmer, making it suitable for a wide range of indoor lighting installations. Its advanced features, reliable performance, and versatile control options make it the perfect choice for professional lighting applications.

General specifications

• Model: DLD1248-4CC-DMX
• Input Range: 12-48V DC

• Output Current: 1x 1.0-2.8A or 4x 250-700mA

• Channels Output: 4-Channel
• Bus Command: DMX512
• Local Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V and Potentiometer 10K Ohm
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• Adjusting the brightness up to completed off (Dim to Dark)
• Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
• Adjusting output curve: Linear / Quadratic / Exponential
• Working Temperature Range: -40/+60°C
• Constant current dimmer: use with constant current LED strip.
• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")

Downloads

• DLD1248-4CC-DMX cut sheet

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
