SPI Pixel Tile RGBW Programmable LED Module ~ Dalcnet PIXEL-TILE-300-RGBW-12

LED pixel module only ~ all other accessories are sold separately

Description

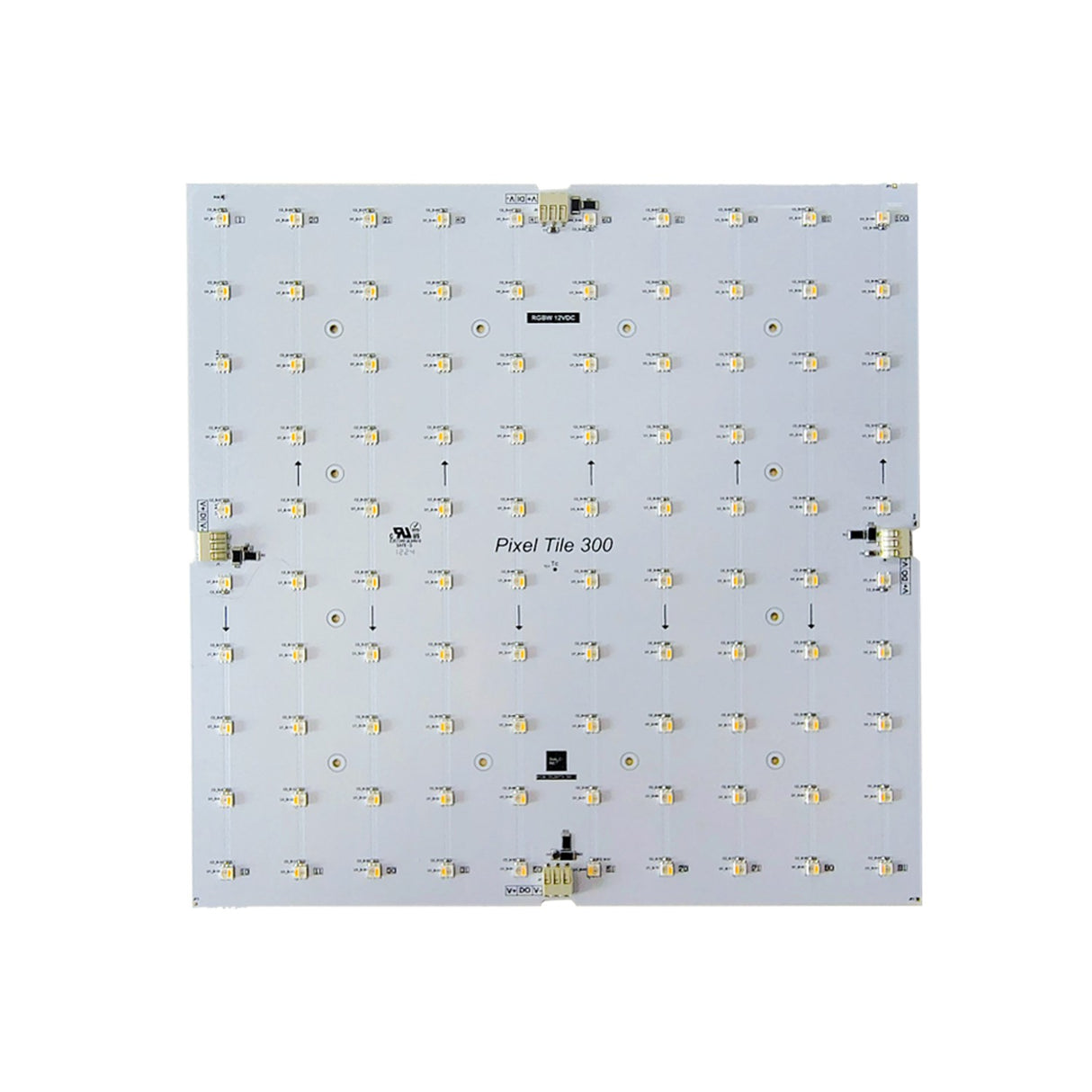

The PIXEL-TILE-300-RGBW-12V is an SPI pixel-to-pixel LED module featuring 100 programmable RGBW LEDs. Each LED is addressable, allowing precise control over color and brightness for advanced lighting effects. Designed to operate with a constant voltage SPI LED controller, this module runs on a SELV-compliant 12V DC power supply for safe and efficient use.

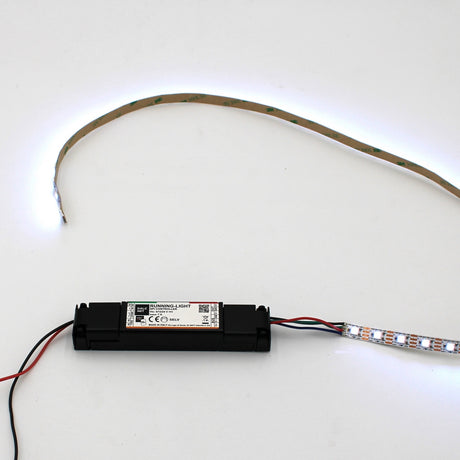

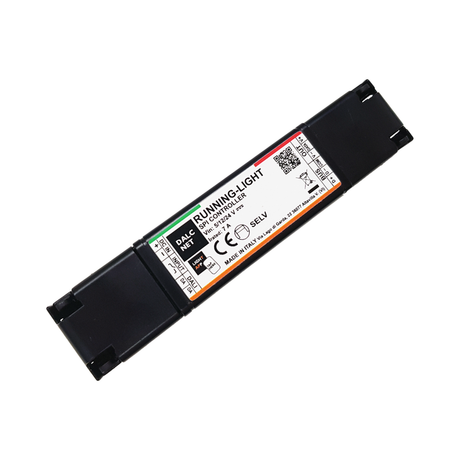

Ideal for dynamic lighting systems, the PIXEL-TILE-300-RGBW-12V offers RGBW output for extended color range and white balance control. It is suitable for architectural lighting, display lighting, and custom installations that require high-performance digital LED solutions. The LED module supports SPI communication for seamless integration with compatible controllers, including the RUNNING-LIGHT controller.

General specifications

• LEDs are individually controllable
• Pixel LED controller required
• Control protocol: SK6805
• Color: RGBW
• Overall dimensions: 300mm x 300mm (11.81" x 11.81")
• Number of LEDs: 100
• Voltage: 12V DC

• Power consumption: 36W

• CRI rating: 80
• Mounting: M3 screws
• Environmental temperature: -10°C – 45°C (14°F – 113°F)

• Warranty: 5 years

Downloads

• PIXEL-TILE-300-RGBW-12V cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
