Compact IP67 Waterproof LED Driver (12V) ~ Meanwell XLG Series

LED power supply only ~ LED strip and all other components sold separately

Description

The Meanwell XLG series LED drivers are compact, high performance power supplies with a constant power mode design which means that they can operate at 70-100% of their current range while delivering their full rated power output. A wide-range AC input capability means that they can be installed in almost any supply system and comprehensive UL 8750 and IEC 61347 approvals (amongst others) ensure they meet project & code requirements.

These compact waterproof LED power supplies are ideal for lighting applications from stage lighting, to fishing lighting, to horticulture lighting and can also be used as a DMX power supply.

General specifications

• Input voltage: 100-305V AC
• Output voltage: 12V DC nominal (adjustable 8.4-12V DC)
• Overload protection: 95-108% overload
• Environmental protection: IP67 waterproof
• Approvals: IEC/EN 61347 independent control gear, ANSI/UL 8750 LED Equipment
• Warranty: 5 years

• XLG-75-12
  • Power: 60W
  • Output current: 5A
  • Dimensions (LxWxH): 140 x 63 x 32mm (5.51" x 2.48" x 1.25")
  • Weight: 0.58kg (1.27lb)
  • Cut sheet for XLG-75-12

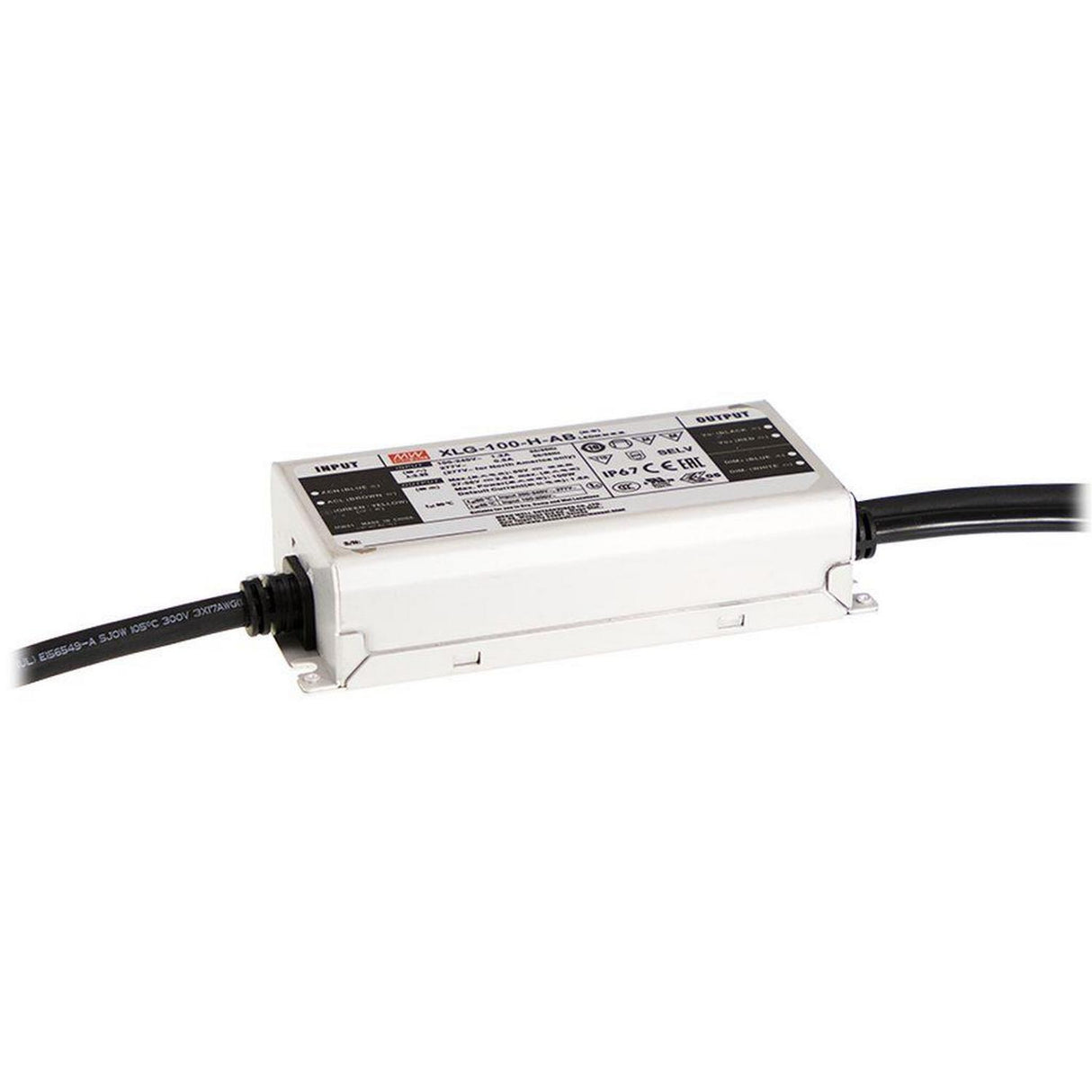

• XLG-100-12
  • Power: 96W
  • Output current: 8A
  • Dimensions: (LxWxH): 140 x 63 x 32mm (5.51" x 2.48" x 1.25")
  • Weight: 0.58kg (1.76lb)
  • Cut sheet for XLG-100-12

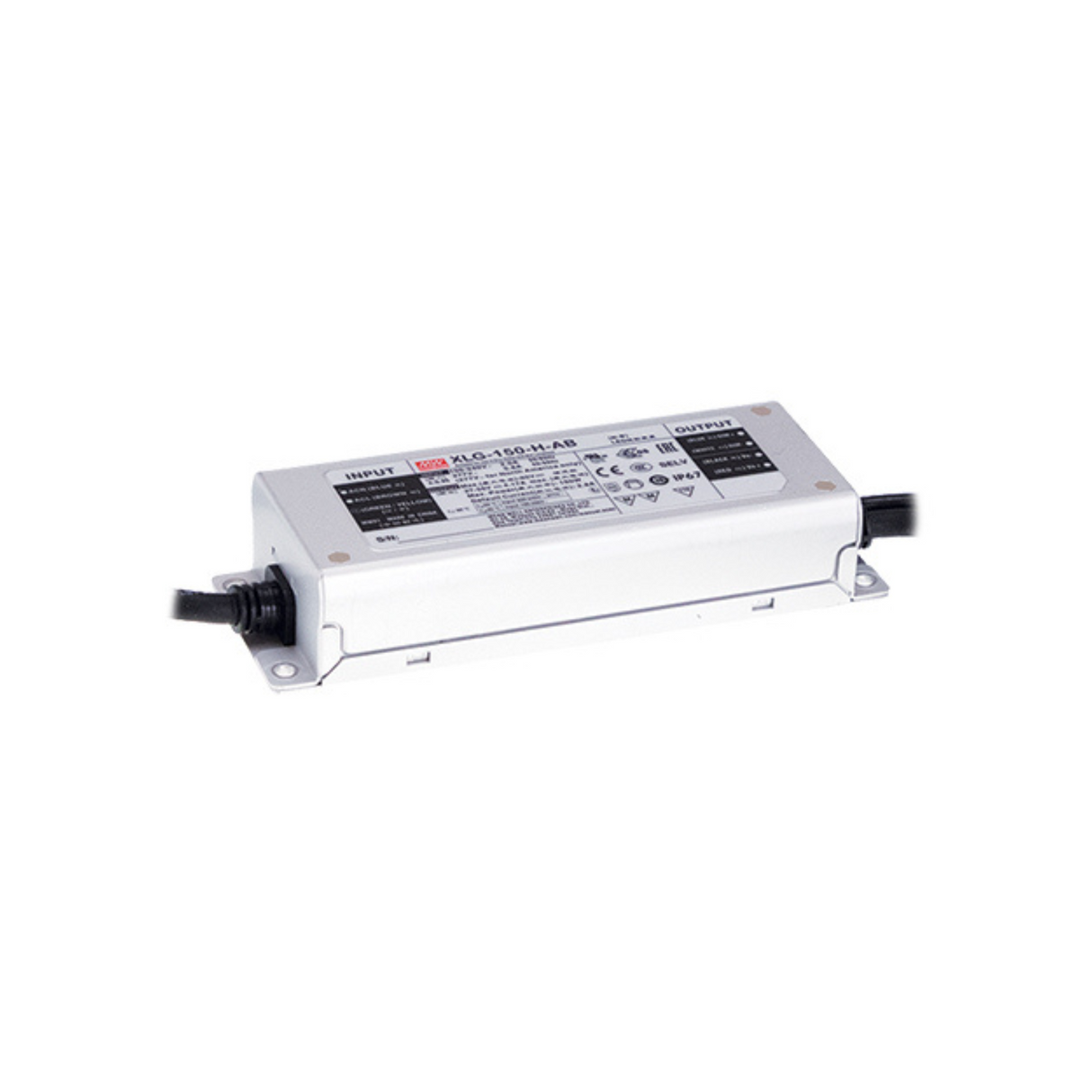

• XLG-150-12
  • Power: 150W
  • Output current: 12.5A
  • Dimensions: (LxWxH): 180 x 63 x 35.5mm (7.08" x 2.48" x 1.39")
  • Weight: 0.8kg (1.76lb)
  • Cut sheet for XLG-150-12

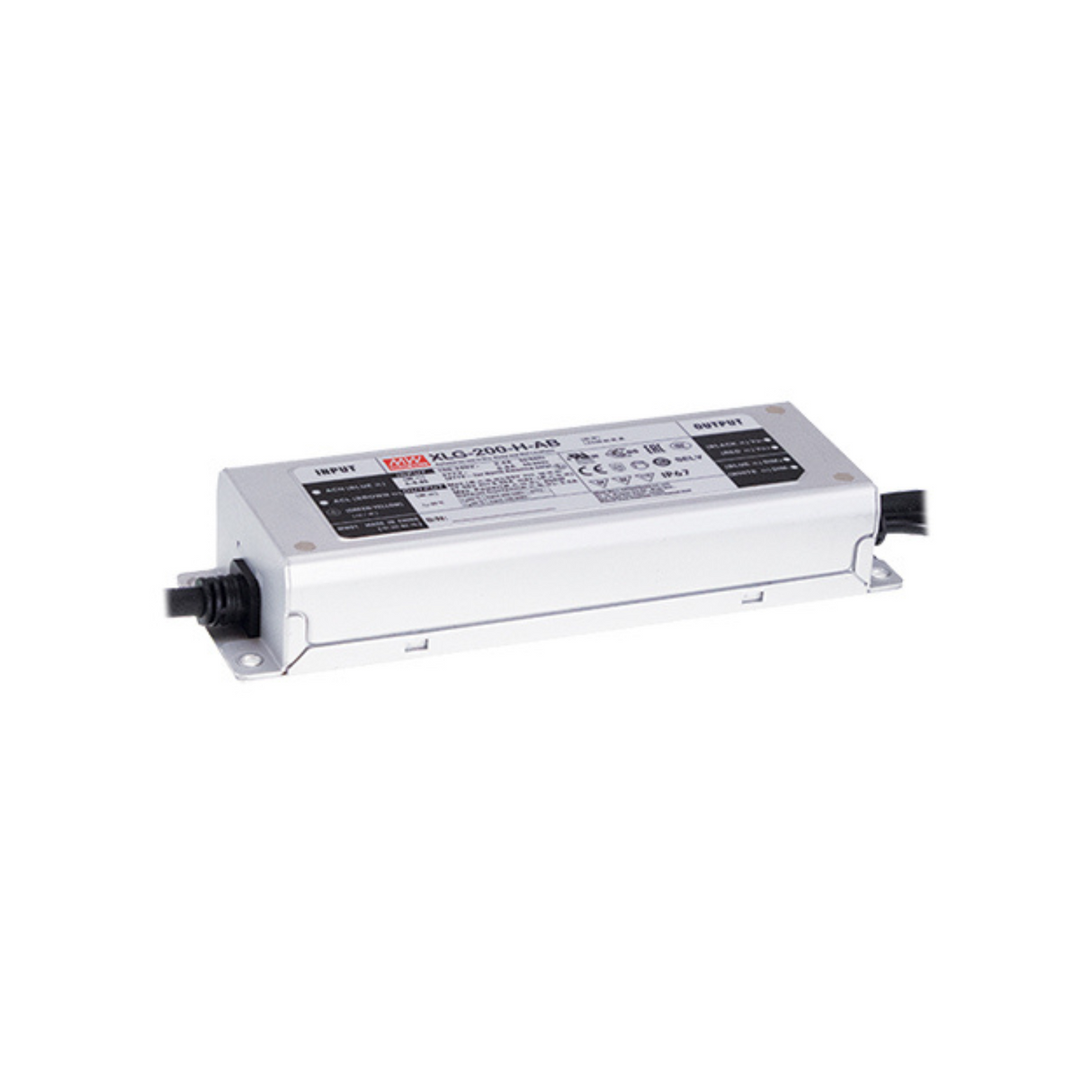

• XLG-200-12
  • Power: 192W
  • Output current: 16A
  • Dimensions (LxWxH): 199 x 63 x 35.5mm (7.84" x 2.48" x 1.40")
  • Weight: 0.85kg (1.87lb)
  • Cut sheet for XLG-200-12

Downloads

• XLG 70W cut sheet
• XLG 150W cut sheet
• XLG 100W cut sheet

• XLG 200W cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
