Mini3 White 160 Mini LED Module ~ Wide Angle Series

Description

Mini3 White 160 Mini LED Module ~ Wide Angle Series

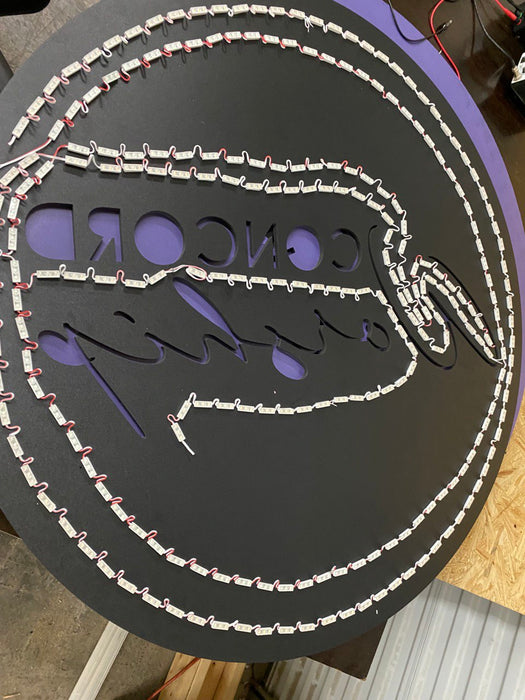

This super bright small LED module is excellent for small spaces and has a 160 Deg wide-angle lens making it a perfect halo LED module for halo lit channel letters as well as narrow back-lit sign letters or signage. The 160-degree beam angle distributes the LED lights which help eliminate hot spots.

The Mini3 Color 160 Mini LED Modules are completely waterproof with IP68 rating and so can be used outdoors.

Expect long-lasting performance, with a 50,000-hour lifetime rating for all our single-color modules, equivalent to 5 years of continuous use. For RGB modules, expect a reliable 1-year lifespan.

General specifications

• Beam Angle: 160°
• Voltage: 12V DC
• Module/ft: 4 Modules
• Lumens/module: 44lm
• Watts/ft: 1.92W
• Watt/Module: 0.48W
• Efficiency (lm/W): 92lm
• 60W Power Supply Load: 100 Modules
• Waterproof Rating: IP68
• Warranty: 5 Years
• Format: 3x LED Chips Per Module
• Available in White 3000K, White 6500K, 9000K
• Pack size for Mini3 160 Mini LED Module is 200pcs. So to order a pack, order 200pcs

Downloads

• Cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
