White Universal Surface-mount LED Corner Lighting Fixture (24V) ~ Corner14 Series

Fixture, mounting hardware, and wire connectors only ~ all other components are sold separately.

Description

This assembled plug-and-play fixture is ideal for most surface-mount corner lighting applications. It is compact and can be attached to pretty much any surface you can drive small screws into. It's a suitable brightness for most use cases and provides perfectly uniform, dotless light.

A common application for this fixture is under-cabinet lighting, but it can be used for most corner lighting purposes. A choice of silver, black, or white finish and a selection of color temperatures let you match it to your design and use case.

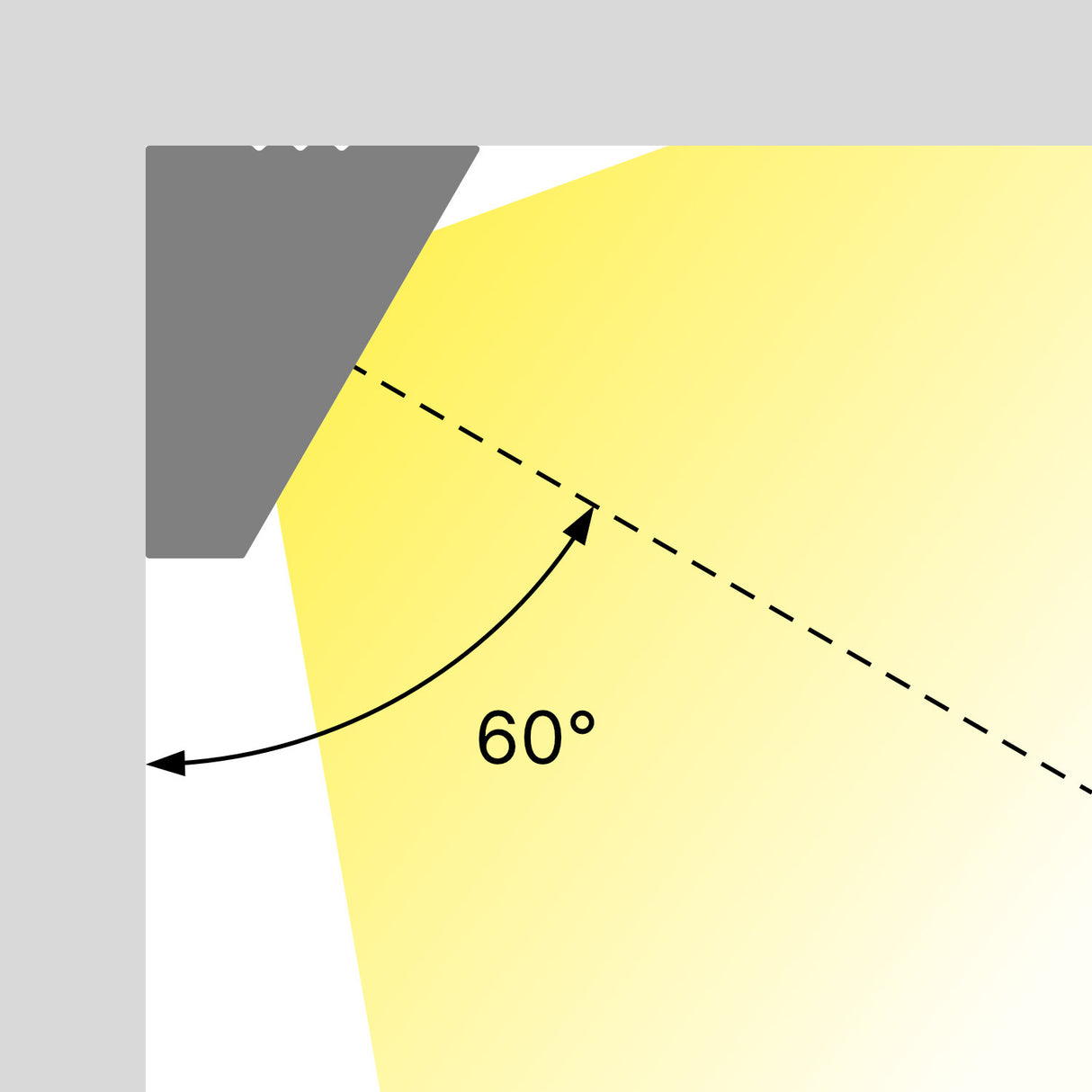

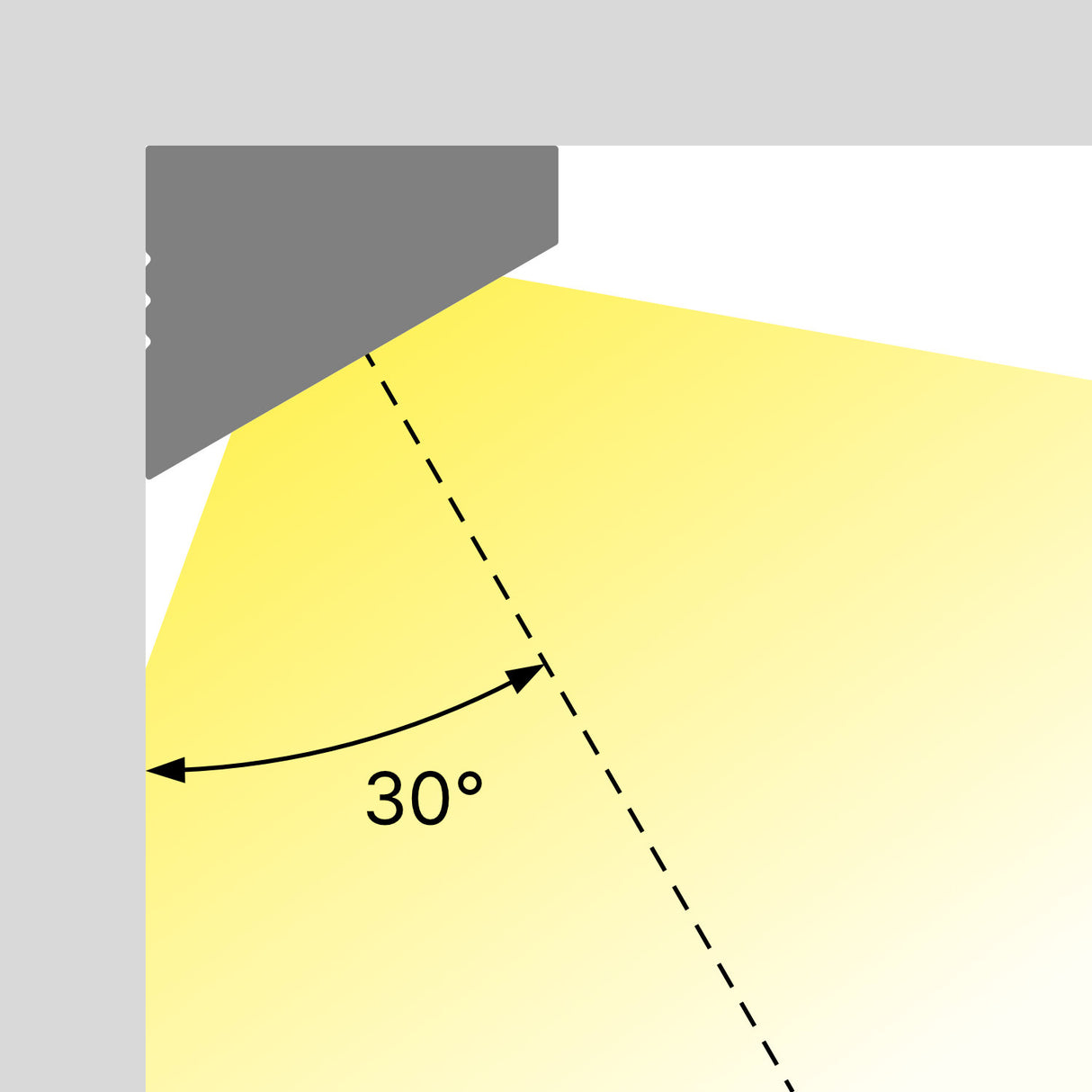

The lighting angle of this fixture is 30 degrees perpendicular to the mounting surface. This angle is ideal for most under cabinet lighting and similar applications. If mounted vertically, with the base against a horizontal surface (such as the underside of a cabinet), the angle is 30 degrees from vertical and 60 degrees from horizontal. If mounted horizontally, with the base against a vertical wall, the angle is 60 degrees from vertical and 30 degrees from horizontal. A picture is worth a thousand words, so we have included two diagrams with the photos to explain it clearly.

Mounting hardware is included. The mounting clips have slots that allow you to adjust their position during install so you don't have to get them perfectly placed from the start. They sit in a hidden cavity in the fixture, so they are invisible when the fixture is installed.

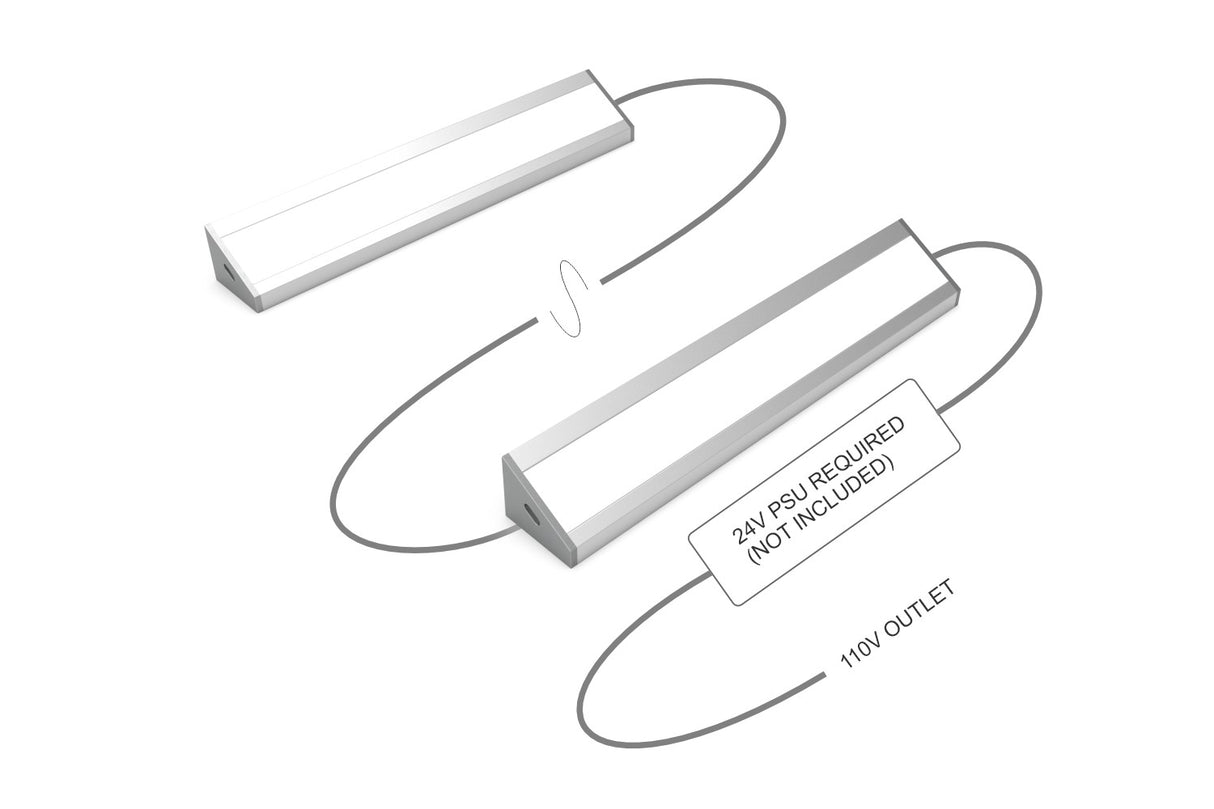

The fixture comes with a 3ft (1m) lead wire. There is an option of the lead wire on one side only – for if you want a single fixture or it will be the last in a series of fixtures – or on both sides – for connecting a chain of fixtures in series. Wire connectors are included for easily connecting fixtures together and to your power supply. With the option of a single lead wire, the wire is extended by the length of the fixture so it can be run to the other side of the fixture if necessary for the orientation you require (as this is a corner fixture and cannot be rotated without changing the direction of the light). If a small hole is made in each of the end caps, the wire can be run discreetly underneath the fixture in the hidden cavity.

This fixture runs on 24V DC, so a 24V DC power supply is required (not included). You can use any standard 24V LED driver or LED controller. We have listed some kits of common configurations in the accessories section.

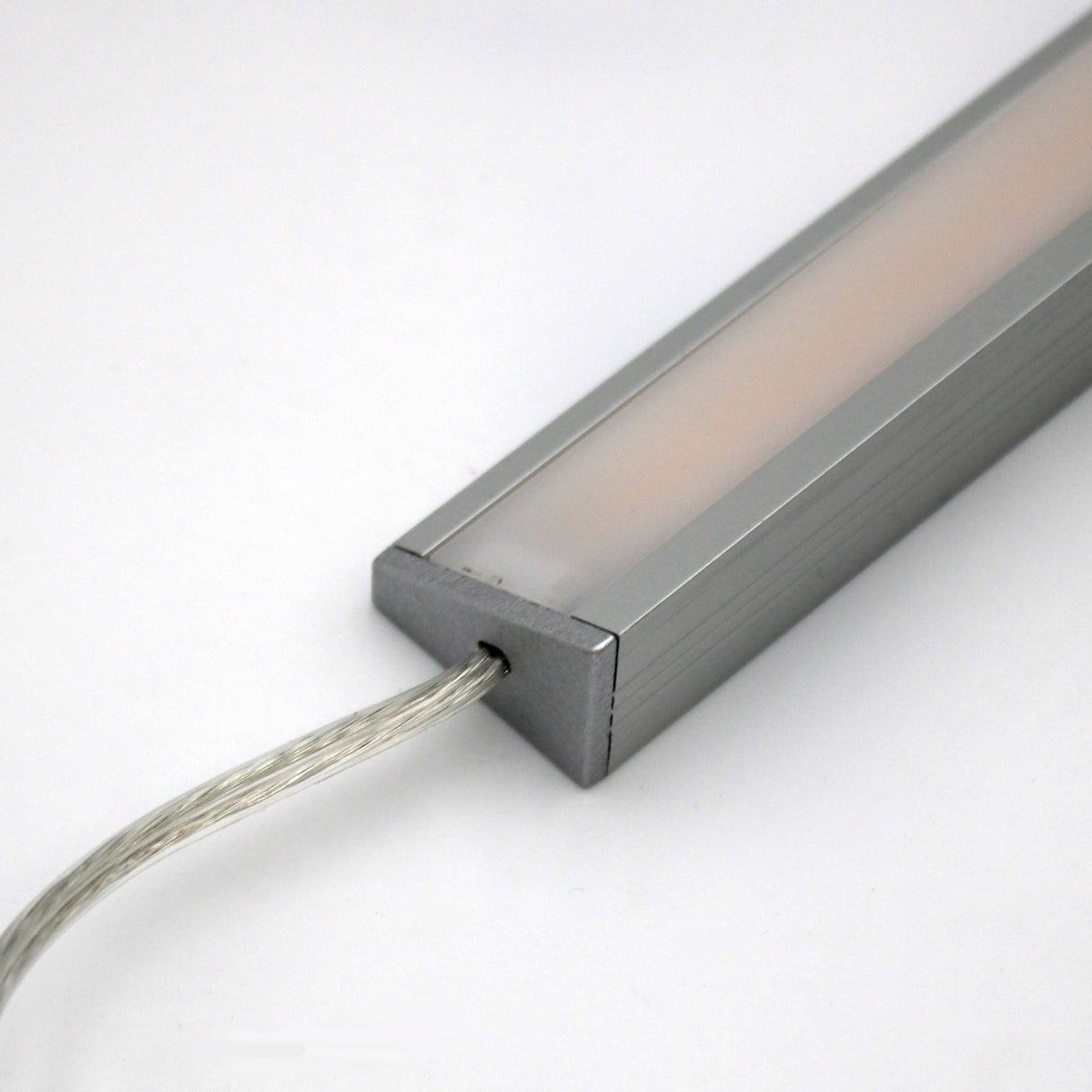

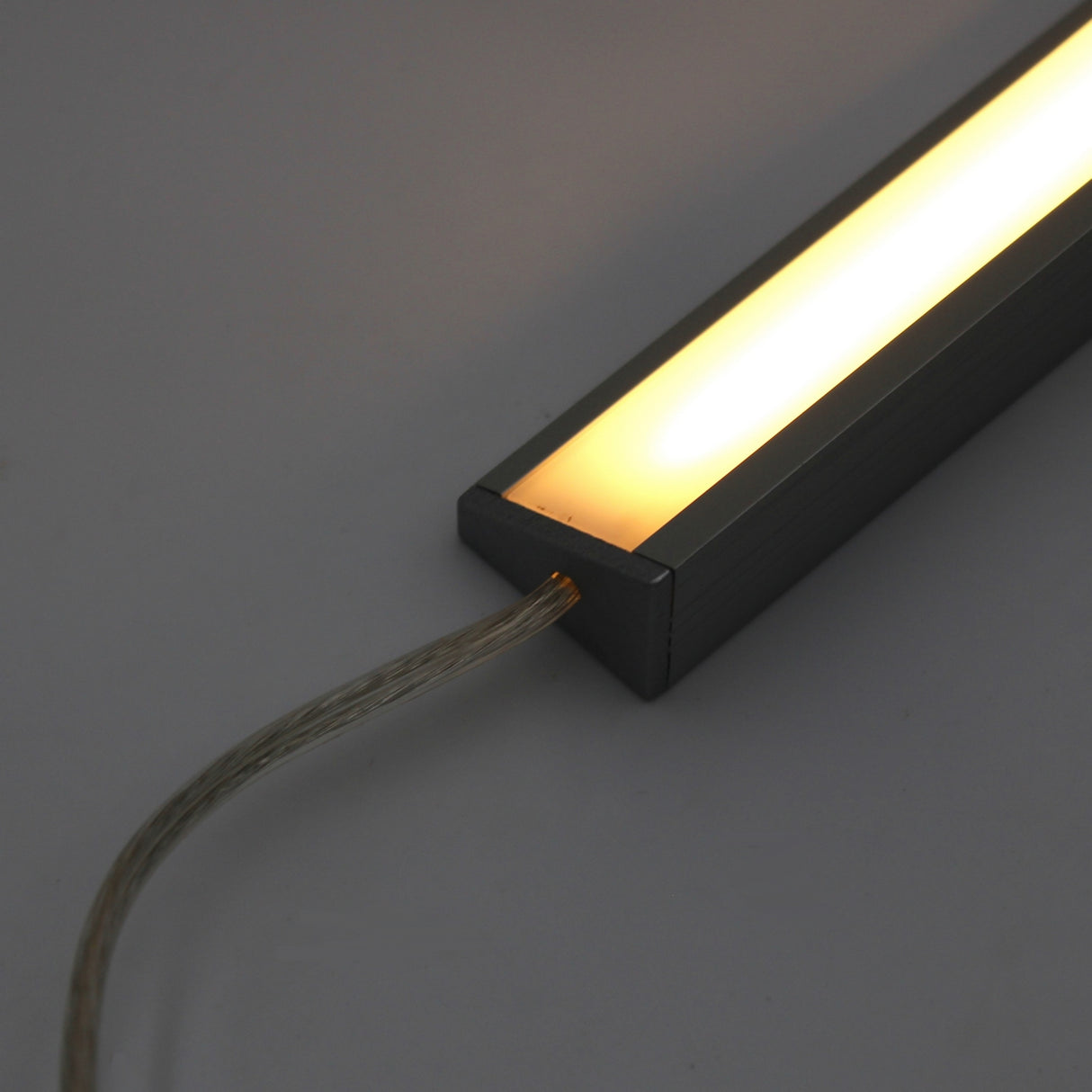

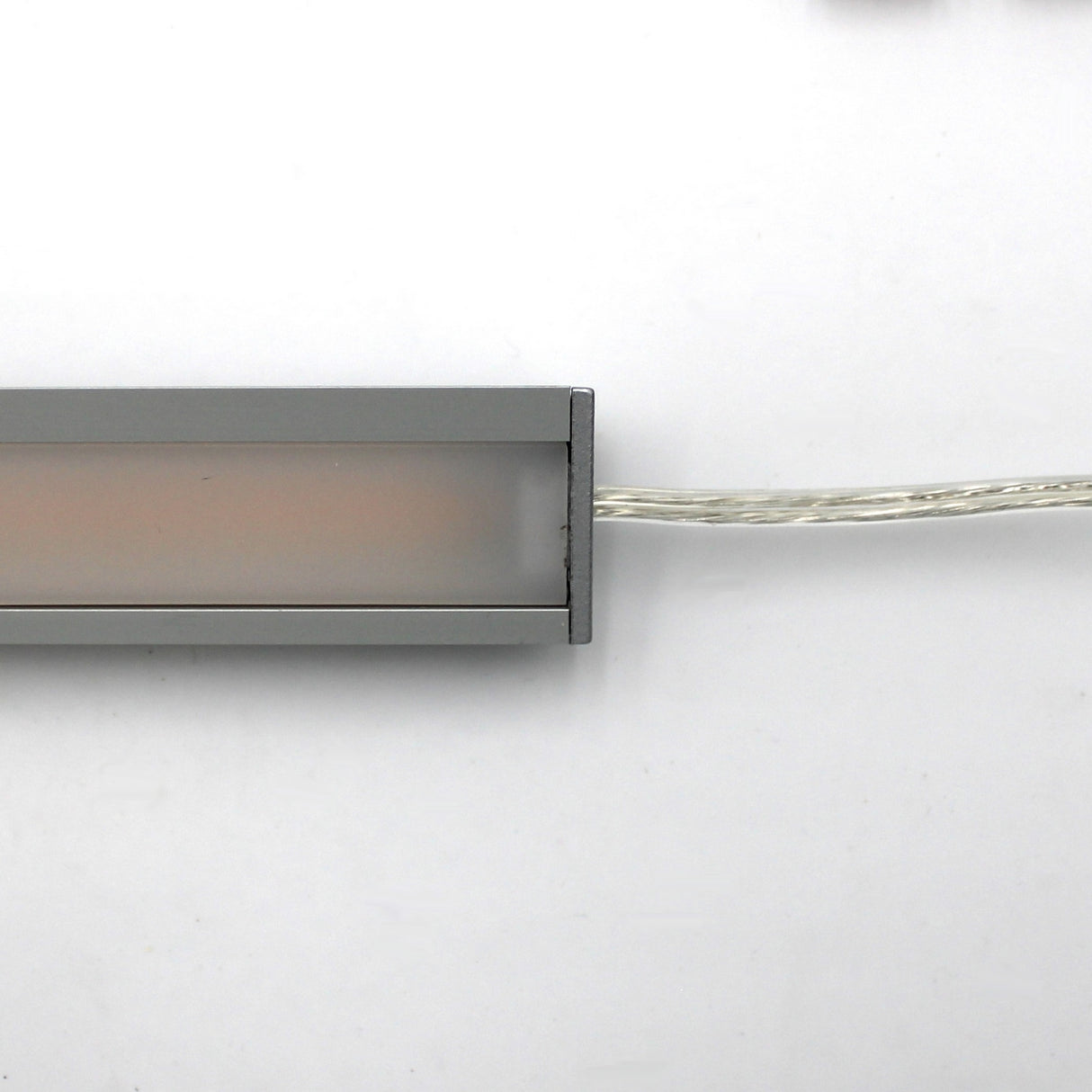

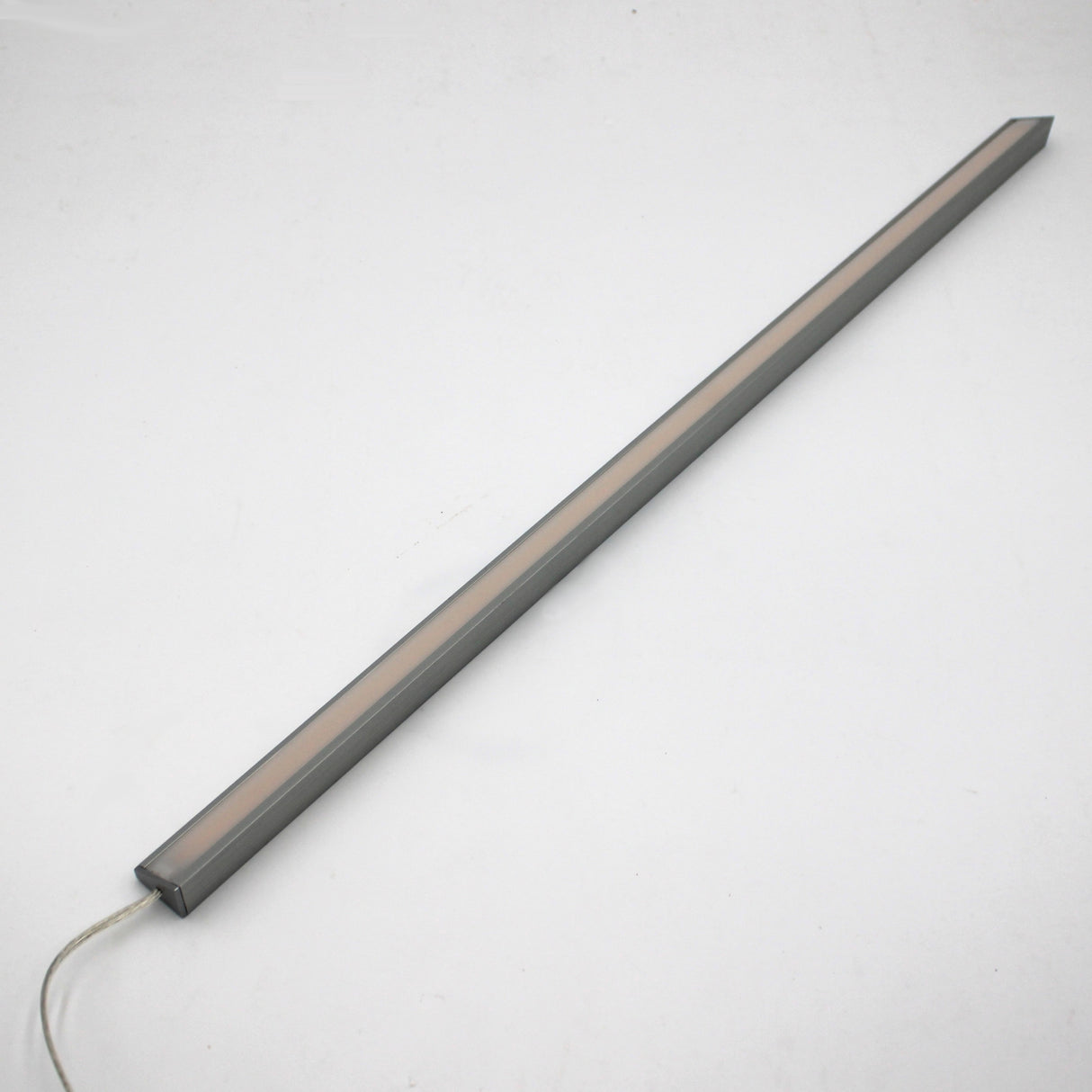

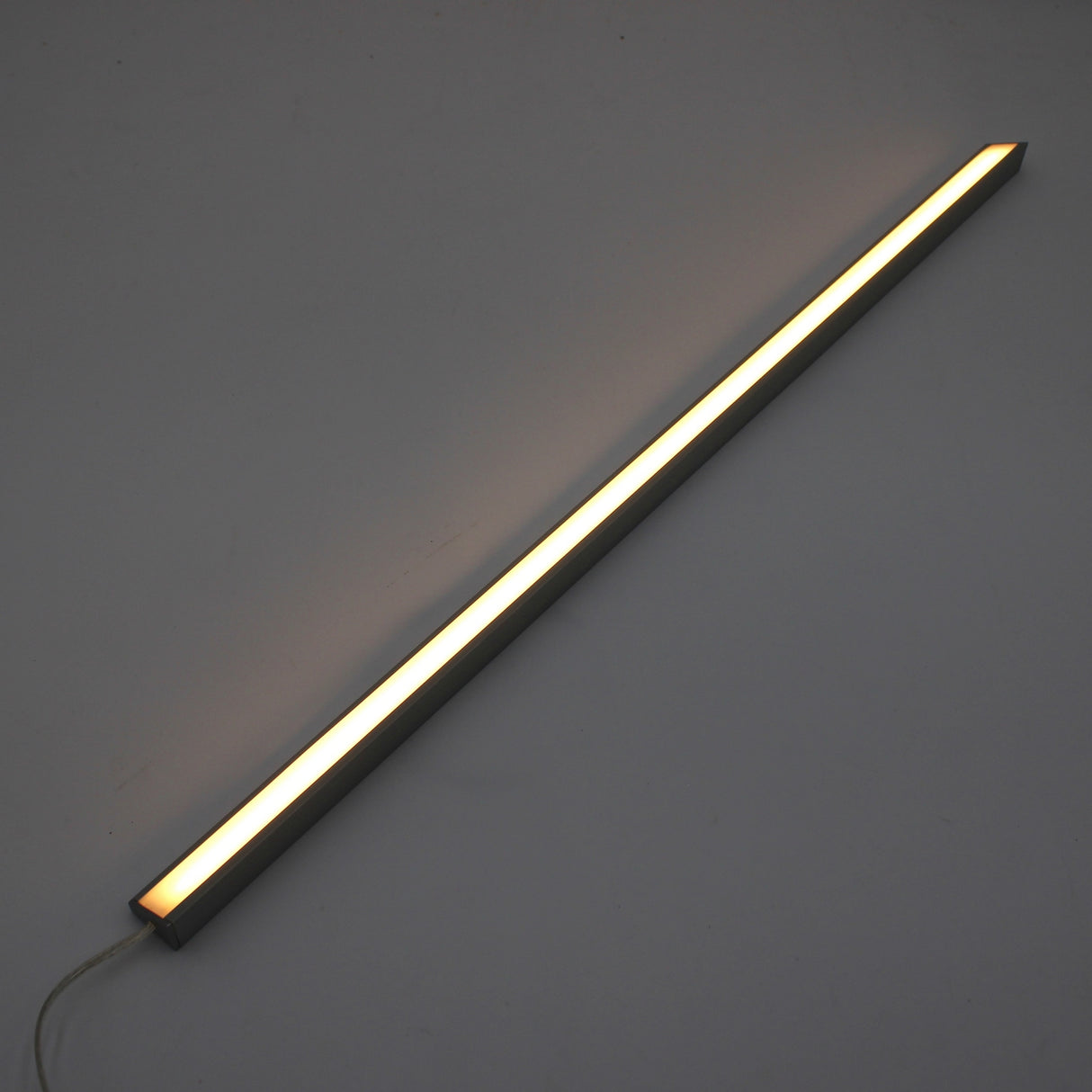

The photos show the 2800K color temperature version. The fixture shown in the photos of an entire unit is the 615mm (24") length.

Specifications

• Light color: White, choice of color temperatures
• Dimmable: Yes, via dimmable driver or LED controller
• Expected lifetime: >50,000 hours

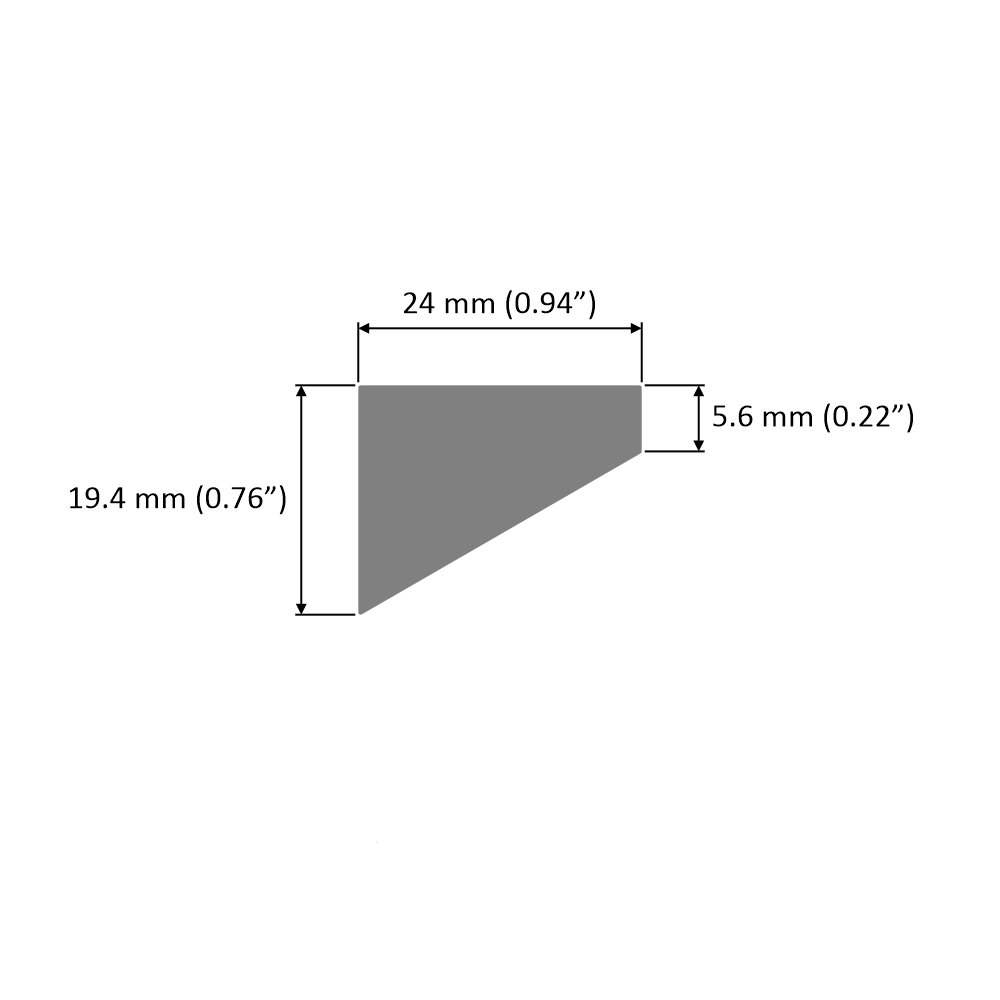

• Width: 24mm (0.94" or 15/16")
• Height: 20mm (0.76" or 3/4")
• Mounting: Clips (included)
• Body material: Aluminum
• Body color options: Silver, Black, White
• Diffuser color: Opal
• Voltage: 24V DC
• Wattage: 10 W/m
  • 615mm (24"): 6W
  • 1m (39"): 10W
  • 2m (78"): 20W
• Brightness: 577 lm/m – 683 lm/m (depends on color temperature; 4000K is the brightest)
  • 615mm (24"): 346 – 410 lm
  • 1m (39"): 577 – 683 lm
  • 2m (78"): 1,153 – 1,366 lm

• CRI: 90+
• Max combined length of a single chain of fixtures: 10m (33ft)
• Lead wire: Option of lead wire on one side (for single fixture or end of series) or on both sides (for connecting fixtures in series).
• Both sides: 3ft (1m)
• One side: 3ft (1m) + length of fixture (so it can be run along the fixture to the other side if necessary for the orientation required)

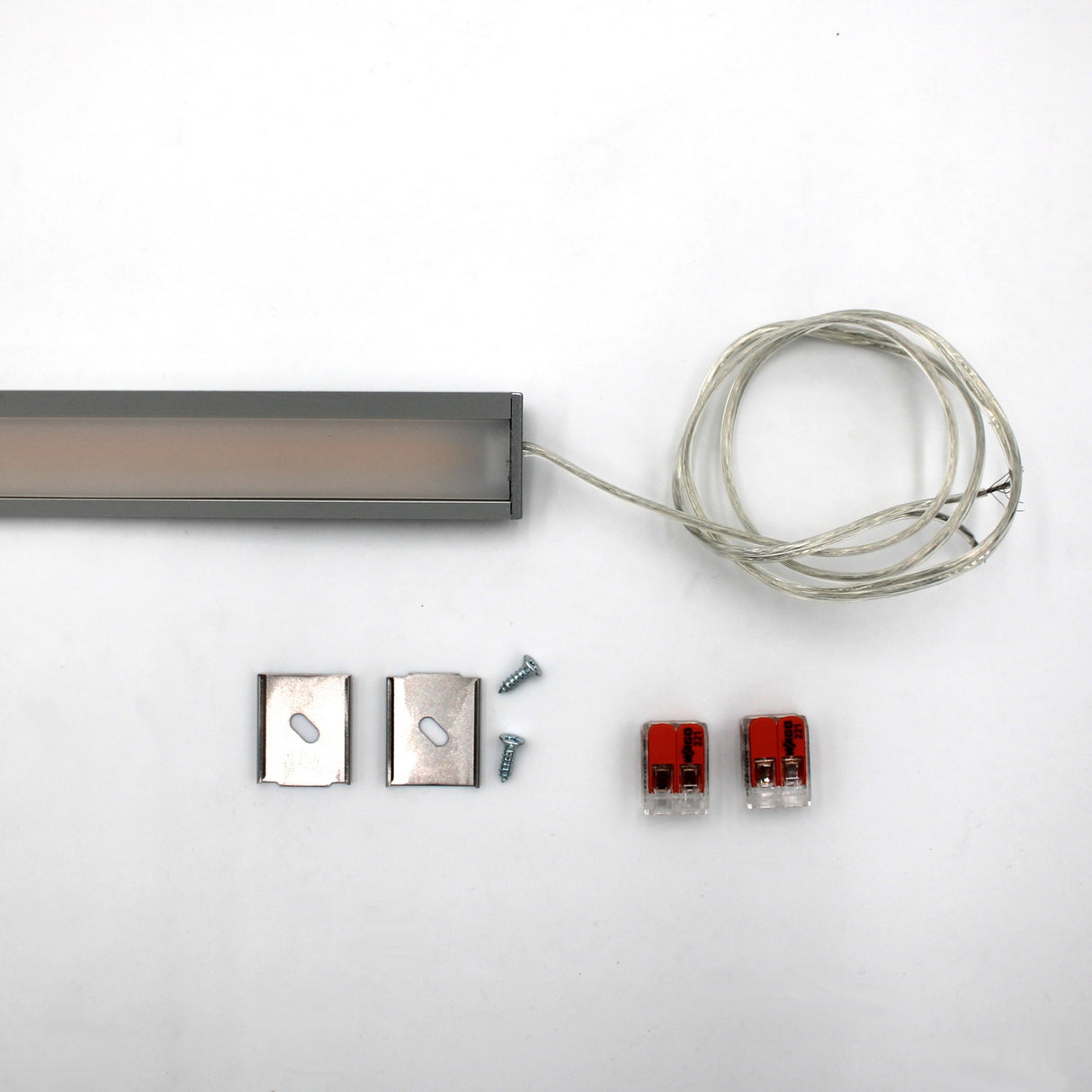

Contents

• 1 x LED lighting fixture
• 2 x Mounting clips with screws
• 2 x 2-way wire connectors

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
