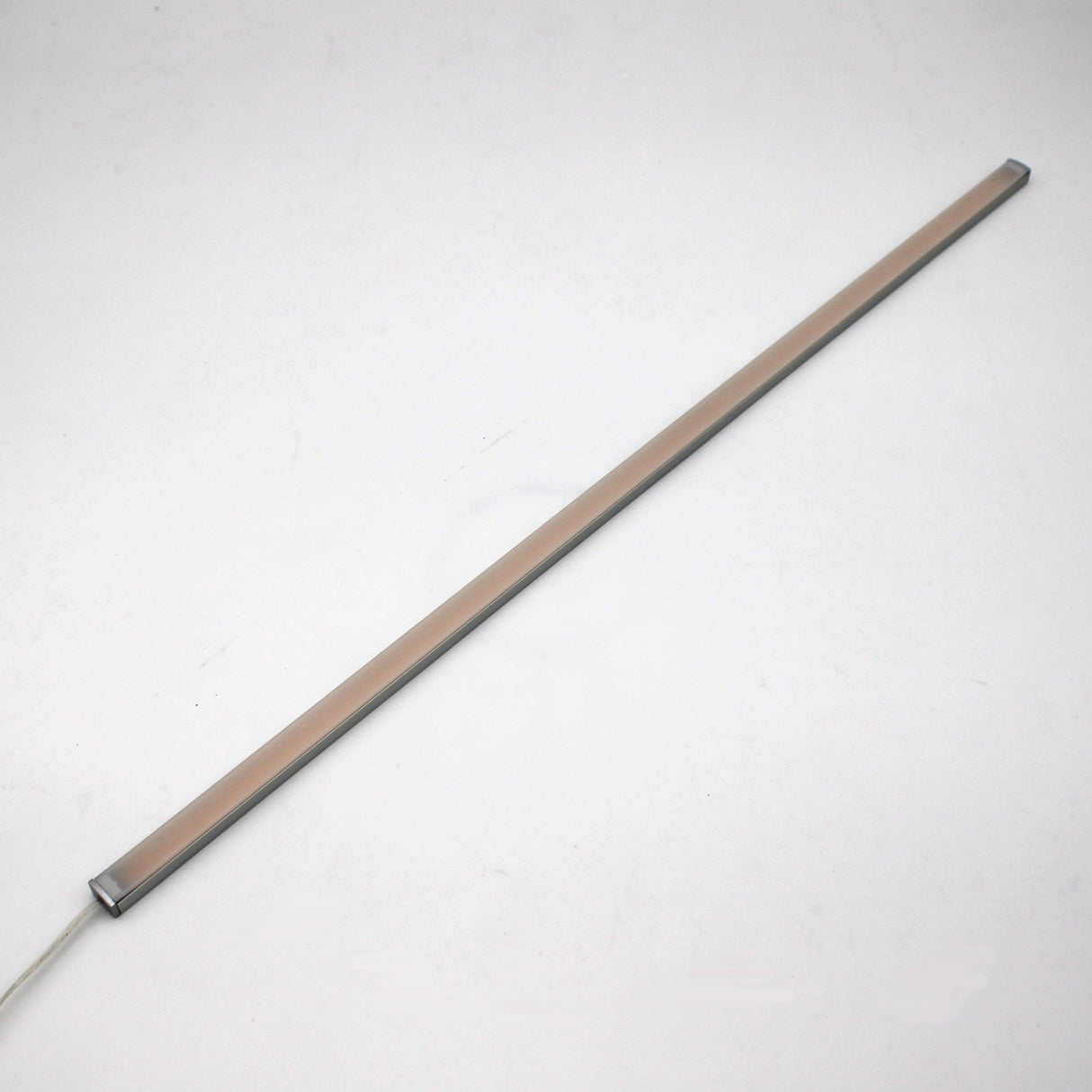

White Universal Surface-mount LED Lighting Fixture ~ Begton12 Series

Fixture, mounting hardware, and wire connectors only ~ all other components are sold separately.

Description

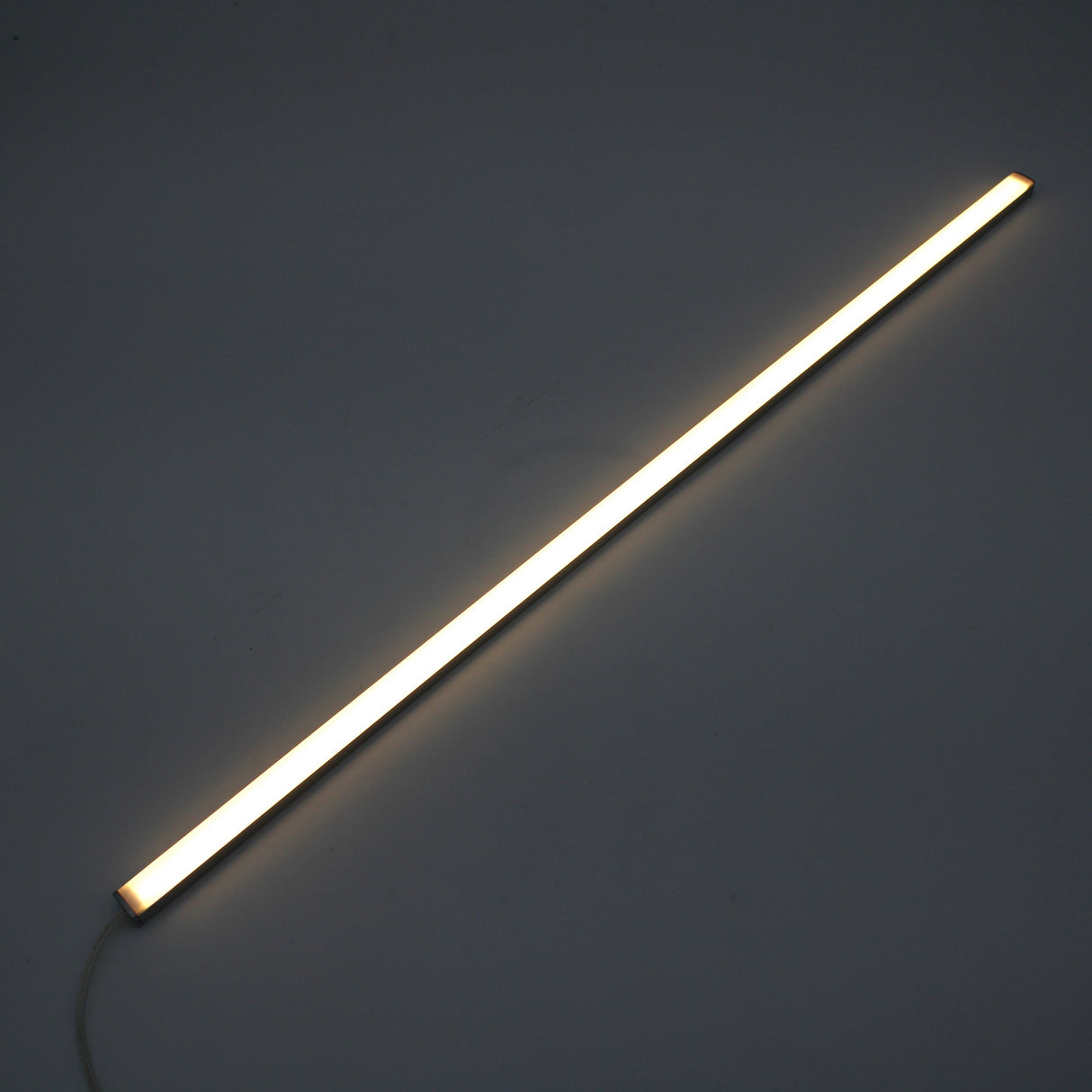

This assembled plug-and-play fixture is ideal for most surface-mount applications. It is compact and can be attached to pretty much any surface you can drive small screws into. It's a suitable brightness for most use cases and provides perfectly uniform, dotless light.

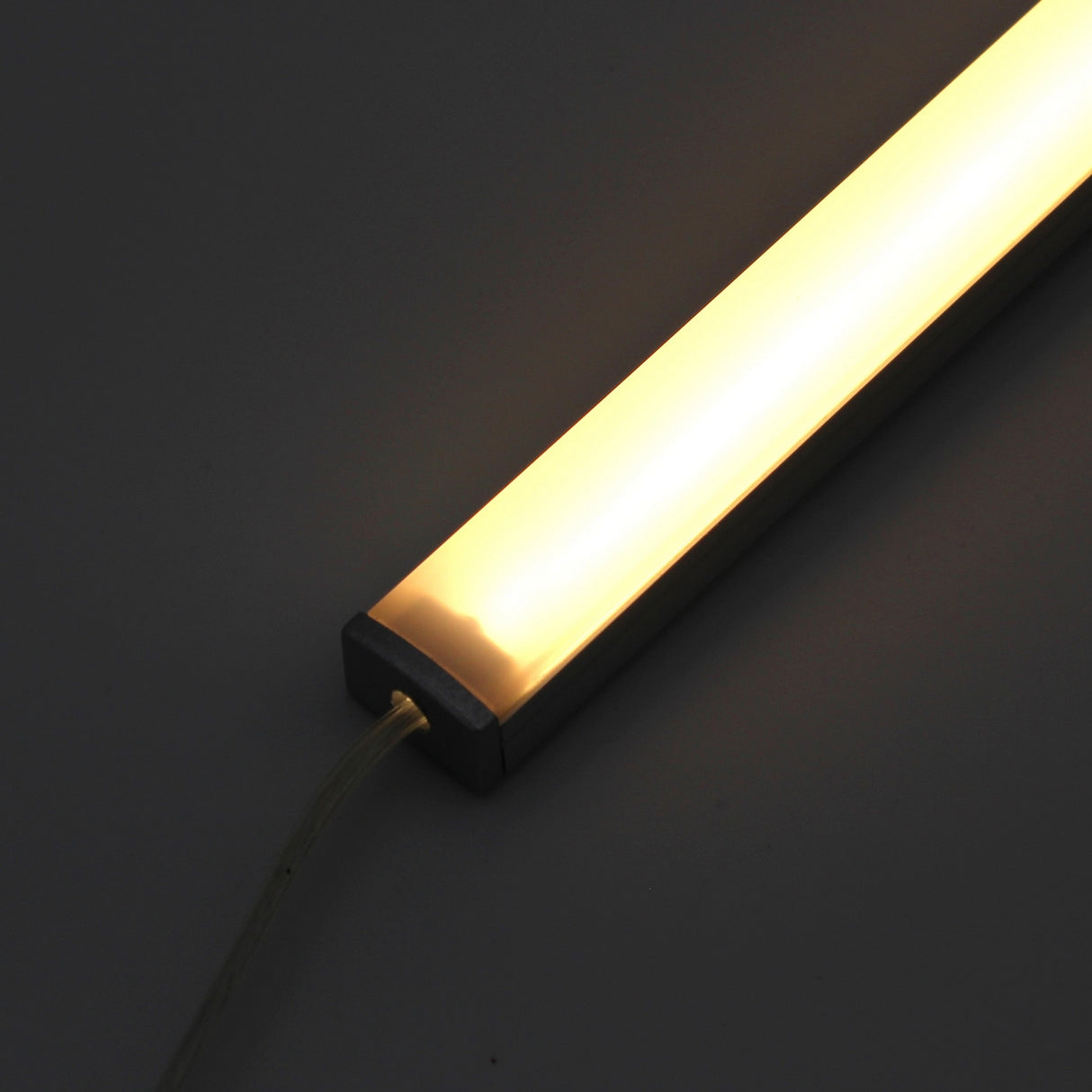

A common application for this fixture is under-cabinet lighting, but it can be used for most purposes. A choice of silver, black, or white finish and a selection of color temperatures let you match it to your design and use case.

Mounting hardware is included. The mounting clips have slots that allow you to adjust their position during install so you don't have to get them perfectly placed from the start.

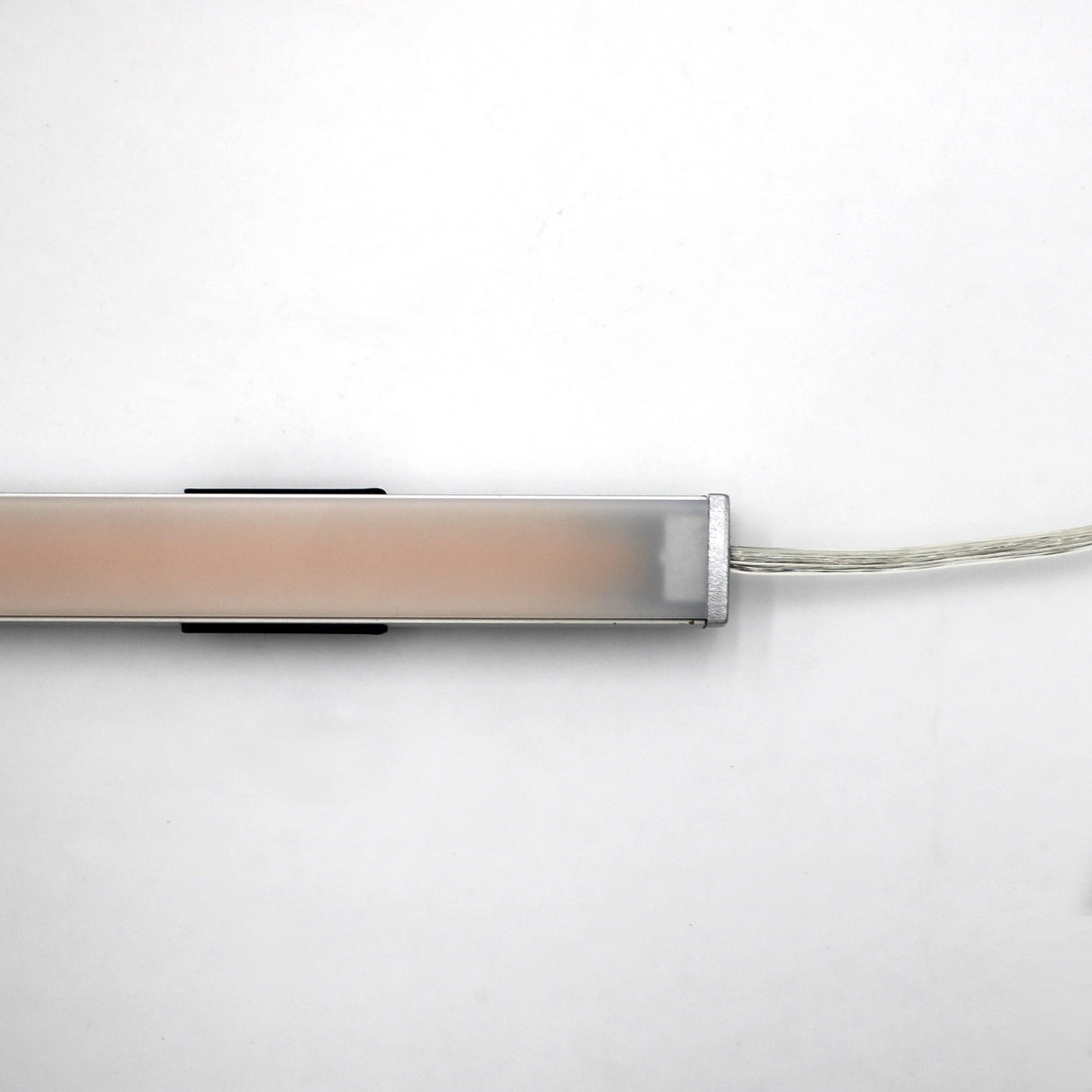

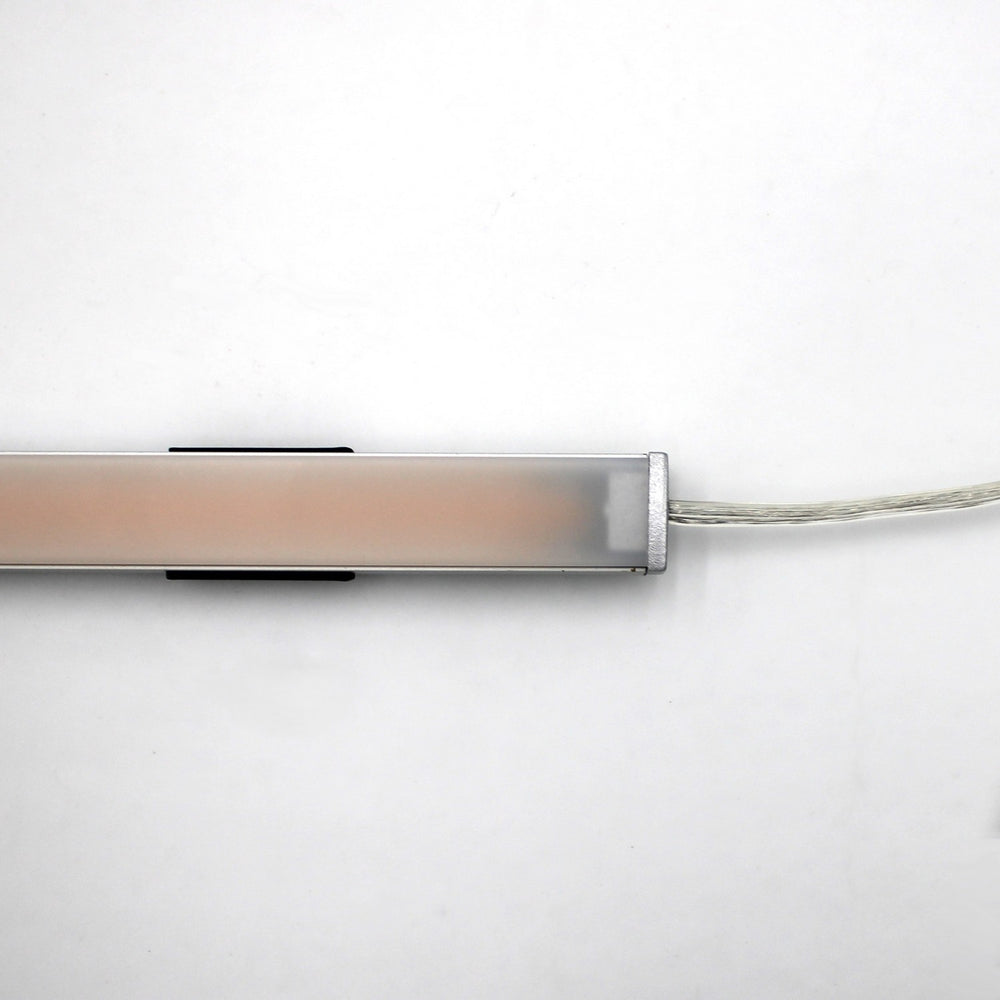

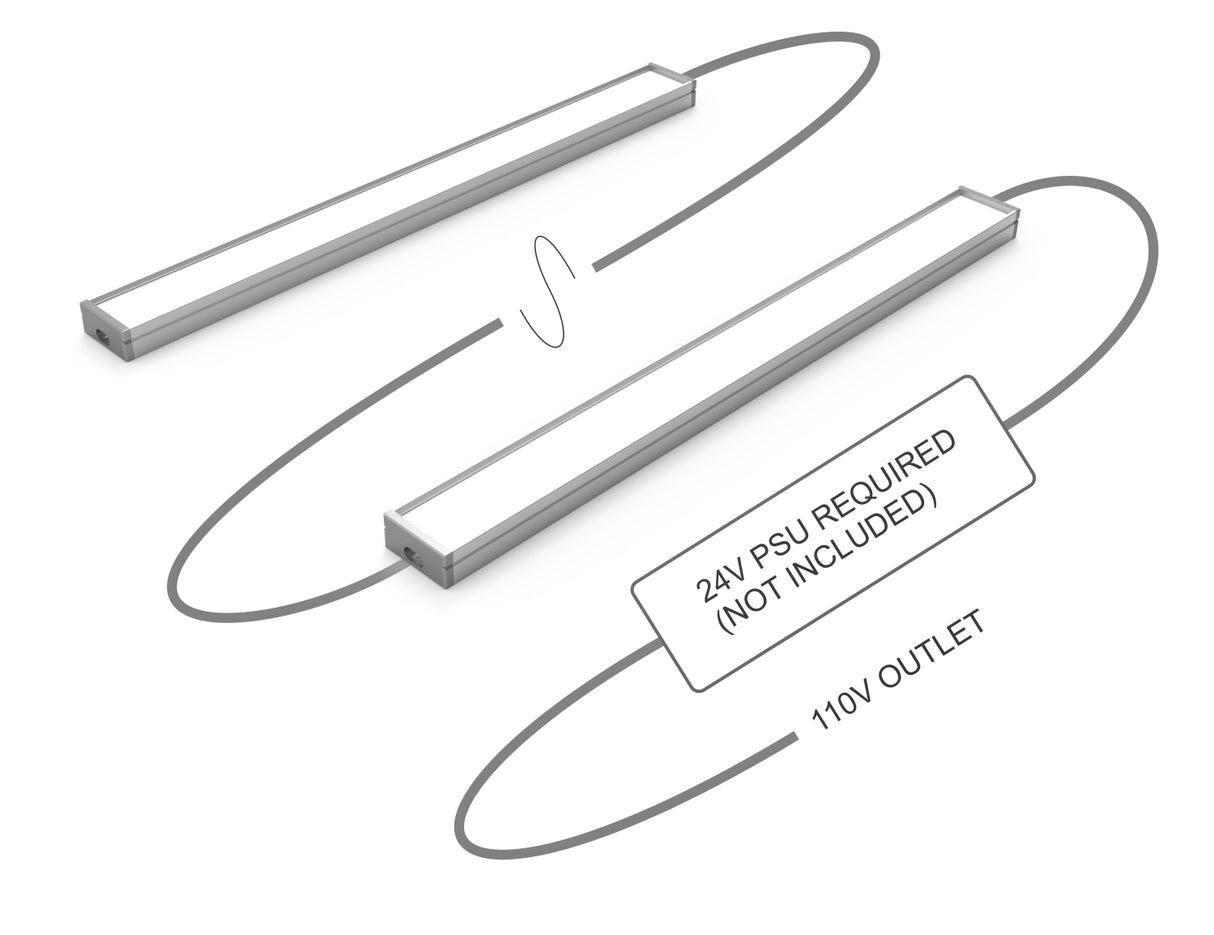

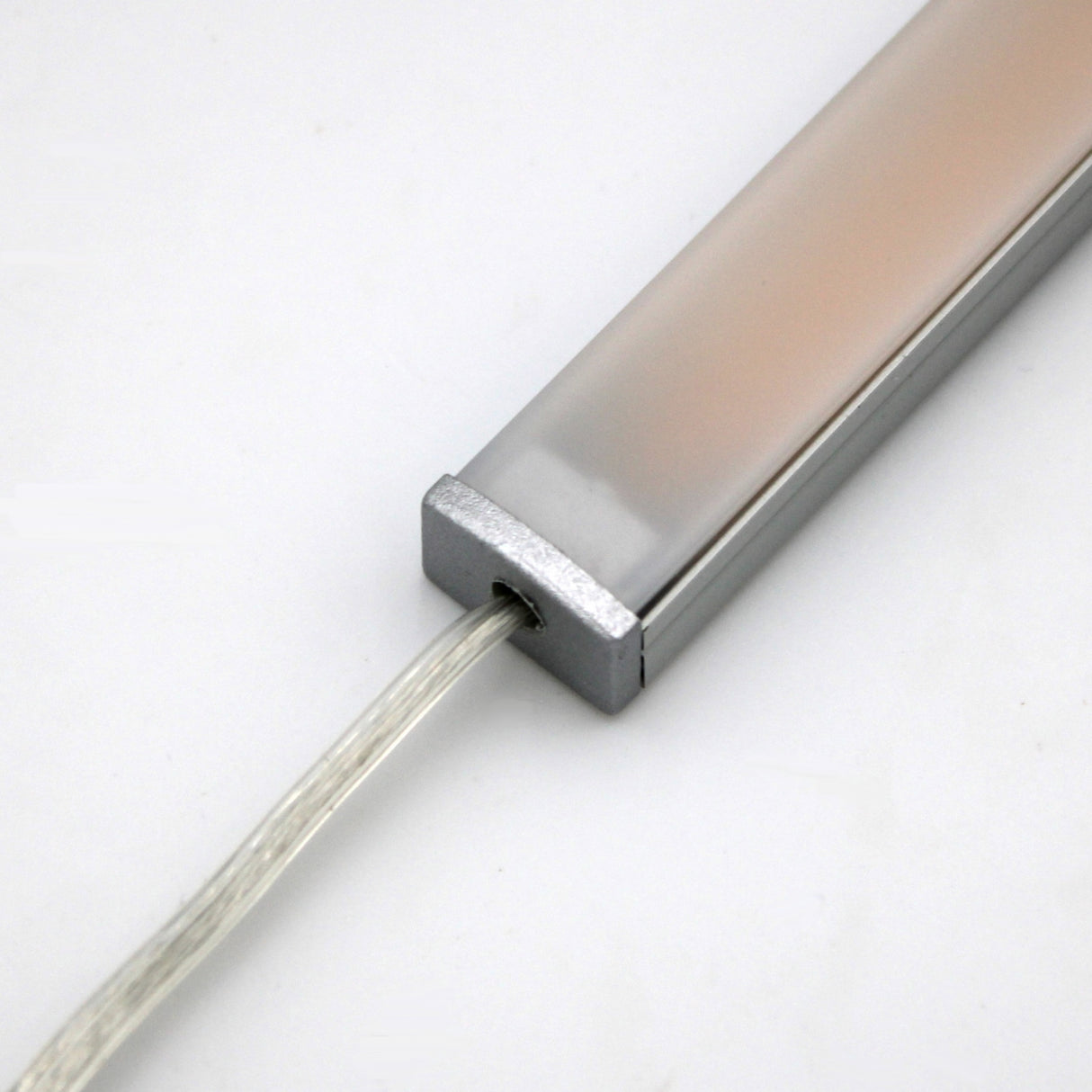

The fixture comes with a 3ft (1m) lead wire. There is an option of the lead wire on one side only – for if you want a single fixture or it will be the last in a series of fixtures – or on both sides – for connecting a chain of fixtures in series. Wire connectors are included for easily connecting fixtures together and to your power supply.

This fixture runs on 24V DC, so a 24V DC power supply is required (not included). You can use any standard 24V LED driver or LED controller. We have listed some kits of common configurations in the accessories section.

General specifications

• Light color: White, choice of color temperatures
• Dimmable: Yes, via dimmable driver or LED controller
• Expected lifetime: >50,000 hours

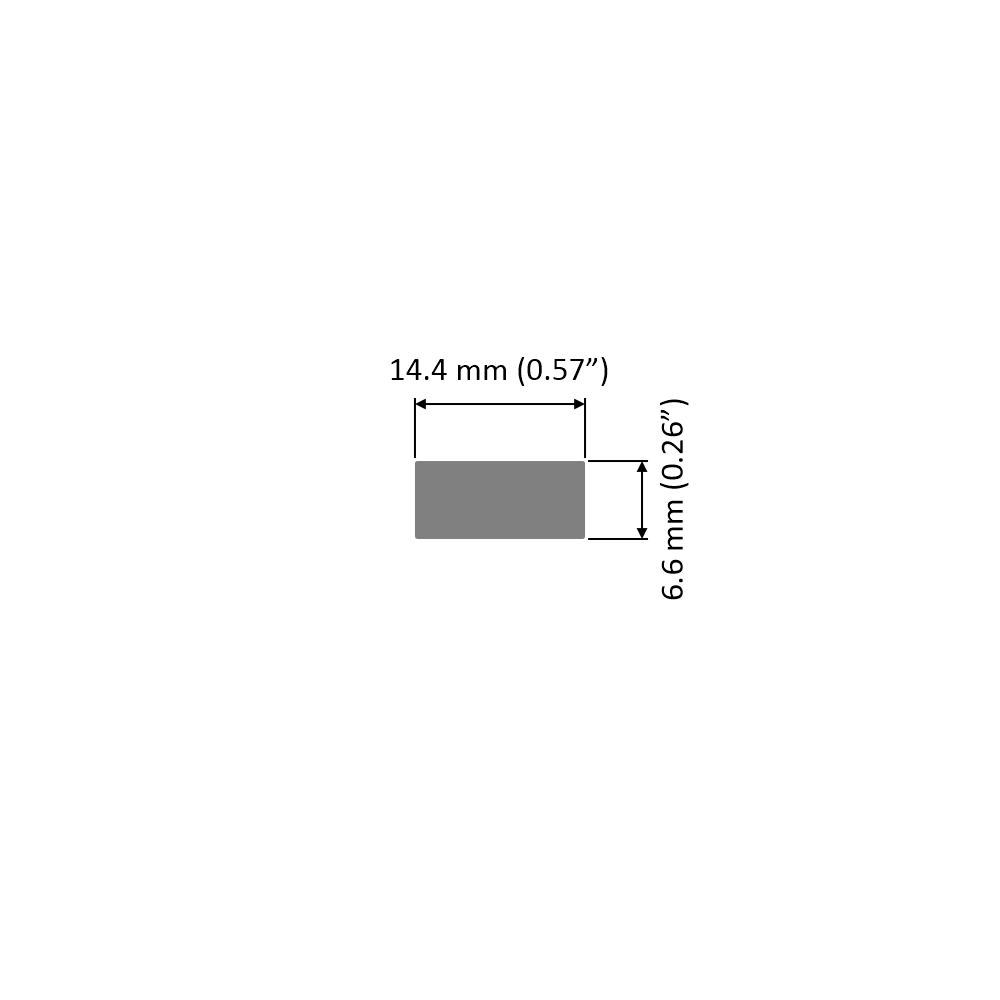

• Width: 15mm (0.57" or 9/16")
• Height: 7mm (0.26" or 1/4")
• Mounting: Clips (included; matching color)
• Body material: Aluminum
• Body color options: Silver, Black, White (mounting clips come in matching color)
• Diffuser color: Opal
• Voltage: 24V DC
• Wattage: 10 W/m
  • 615mm (24"): 6W
  • 1m (39"): 10W
  • 2m (78"): 20W
• Brightness: 961 lm/m – 1,138 lm/m (depends on color temperature; 4000K is the brightest)
  • 615mm (24"): 586 – 694 lm
  • 1m (39"): 961 – 1,138 lm
  • 2m (78"): 1922 – 2,276 lm
• CRI: 90+
• Max combined length of a single chain of fixtures: 10m (33ft)
• Lead wire: 3ft (1m). Option of lead wire on one side (for single fixture or end of series) or on both sides (for connecting fixtures in series).

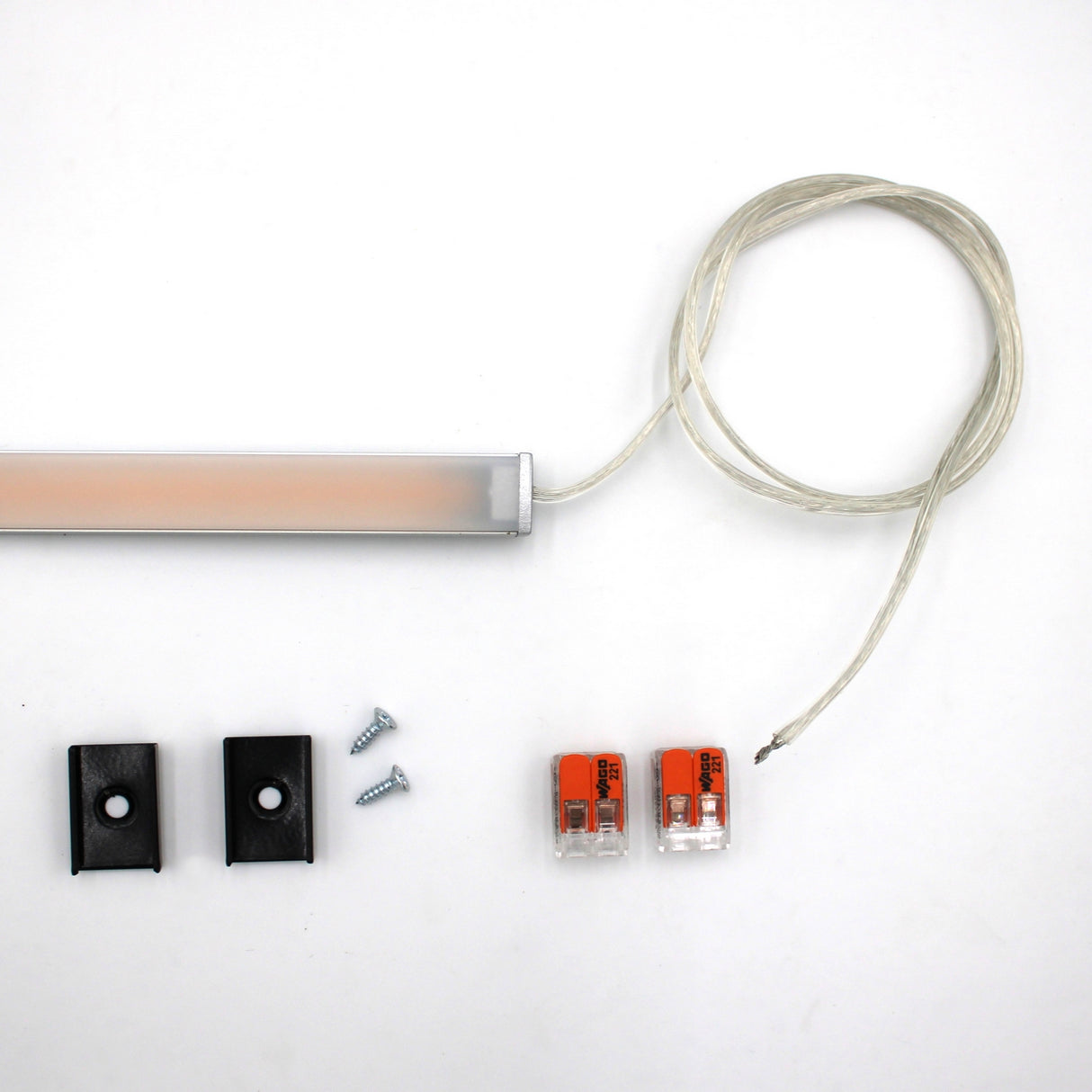

Contents

• 1 x LED lighting fixture
• 2 x Mounting clips with screws
• 2 x 2-way wire connectors

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
