White Universal Surface-mount Waterproof Outdoor LED Lighting Fixture

Fixture, mounting hardware, and wire connectors only ~ all other components are sold separately.

Description

This assembled plug-and-play fixture is ideal for most outdoor surface-mount lighting applications. It is robust, waterproof, and UV resistant; it's resin-filled for ultimate water resistance. It is compact and can be attached to pretty much any surface you can drive small screws into. It's a suitable brightness for most use cases and provides perfectly uniform, dotless light.

This fixture is great for lighting on concrete steps, decks and patios, outdoor kitchens, outdoor entertainment areas, and most applications requiring a waterproof fixture. A choice of silver or black finish and a selection of color temperatures let you match it to your design and use case.

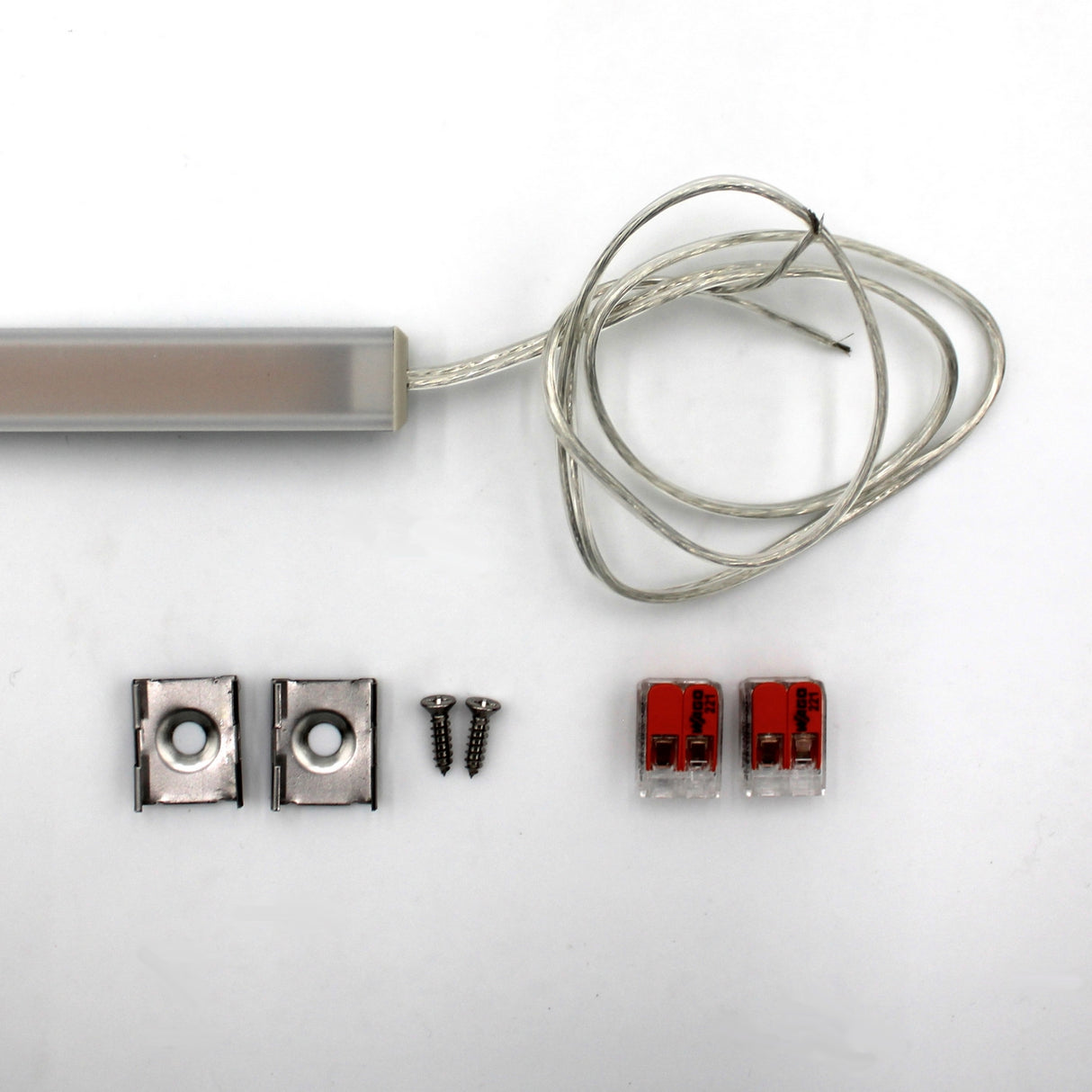

Mounting hardware is included. The mounting clips have slots that allow you to adjust their position during install so you don't have to get them perfectly placed from the start. They match the color of the fixture and sit neatly on it, so they do not affect the appearance of the fixture. We have also listed alternative mounting hardware, such as an adjustable angle mount, in the accessories section.

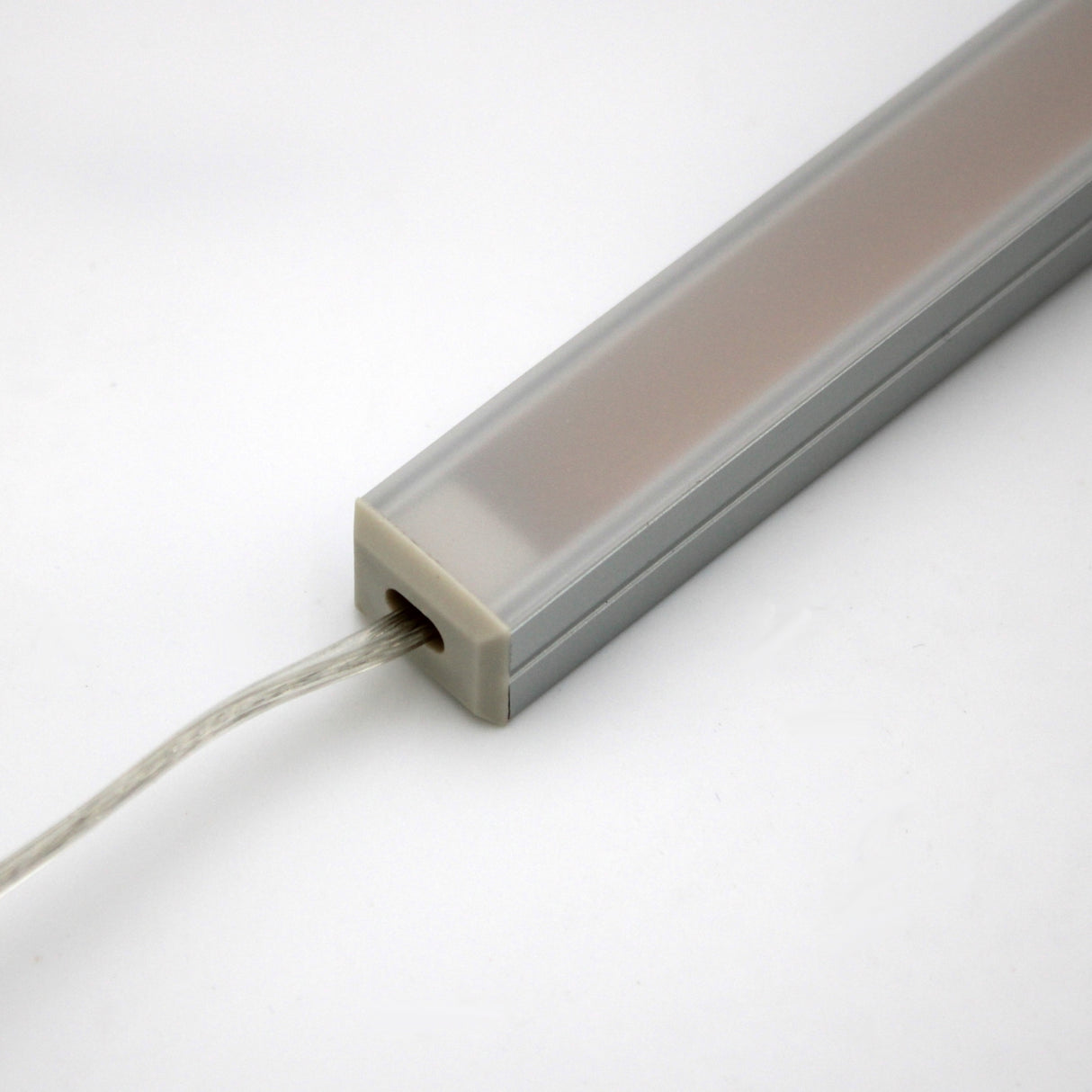

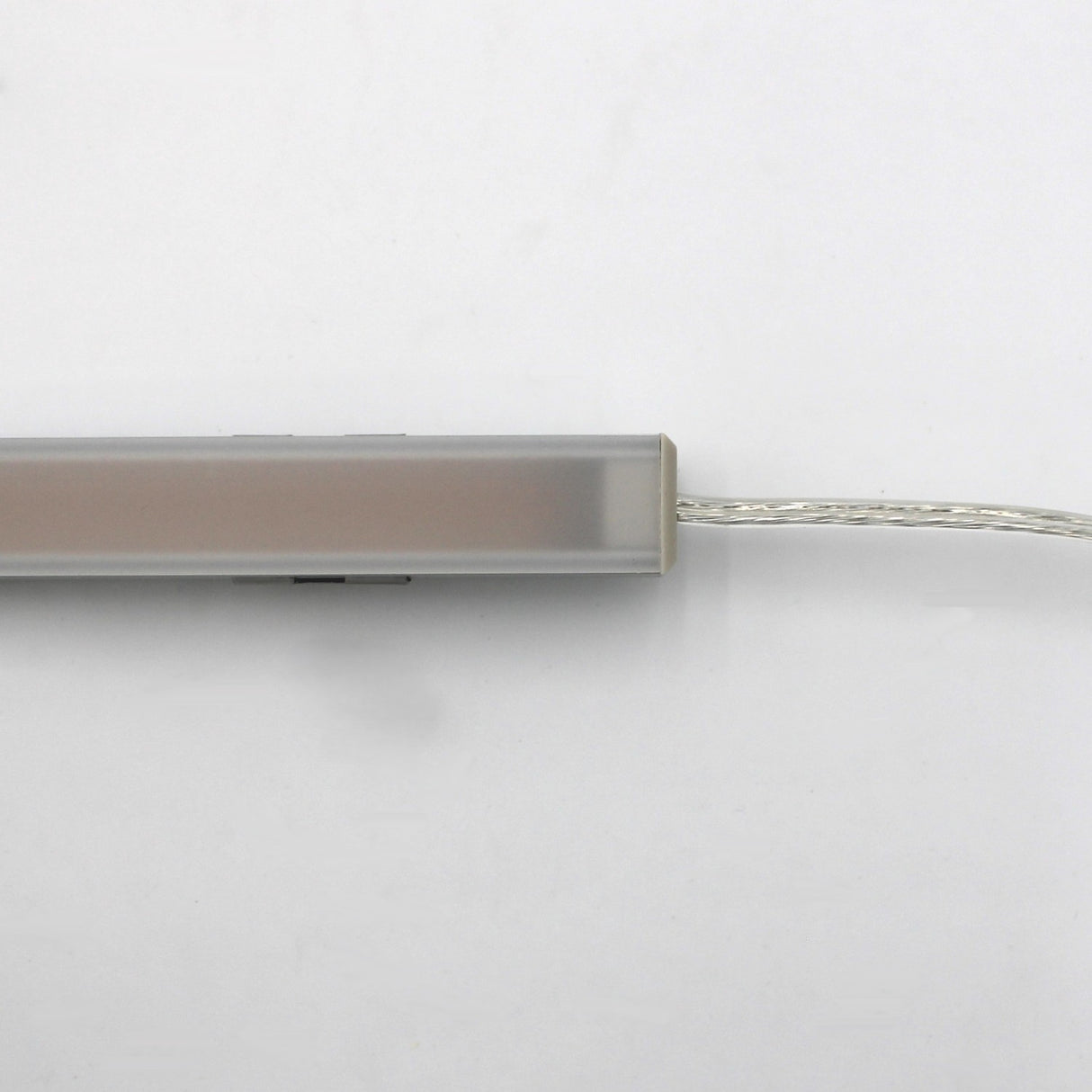

The fixture comes with a 3ft (1m) lead wire. There is an option of the lead wire on one side only – for if you want a single fixture or it will be the last in a series of fixtures – or on both sides – for connecting a chain of fixtures in series.

Wire connectors are included for easily connecting fixtures together and to your power supply. Note that these wire connectors are NOT waterproof – they must be installed in a dry location or waterproofed with the waterproofing gelboxes listed in the accessories.

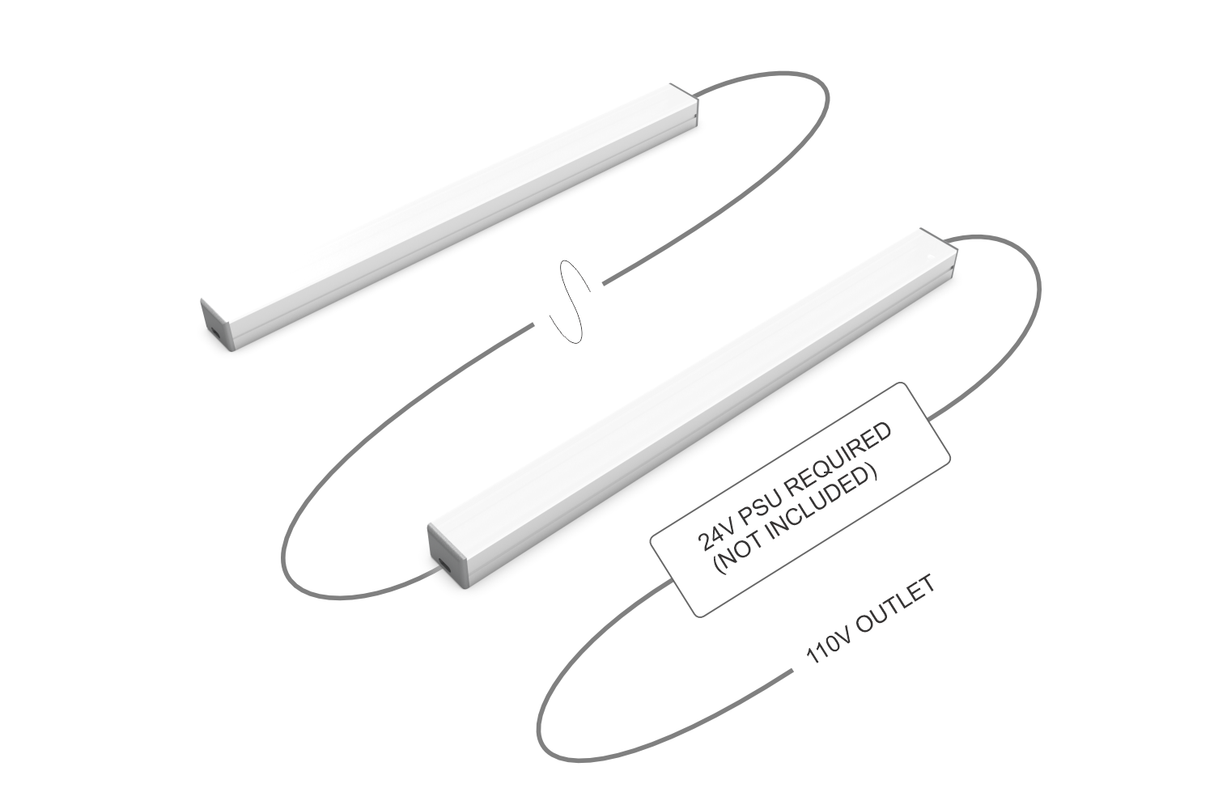

This fixture runs on 24V DC, so a 24V DC power supply is required (not included). You can use any standard 24V LED driver or LED controller. We have listed some kits of common configurations in the accessories section.

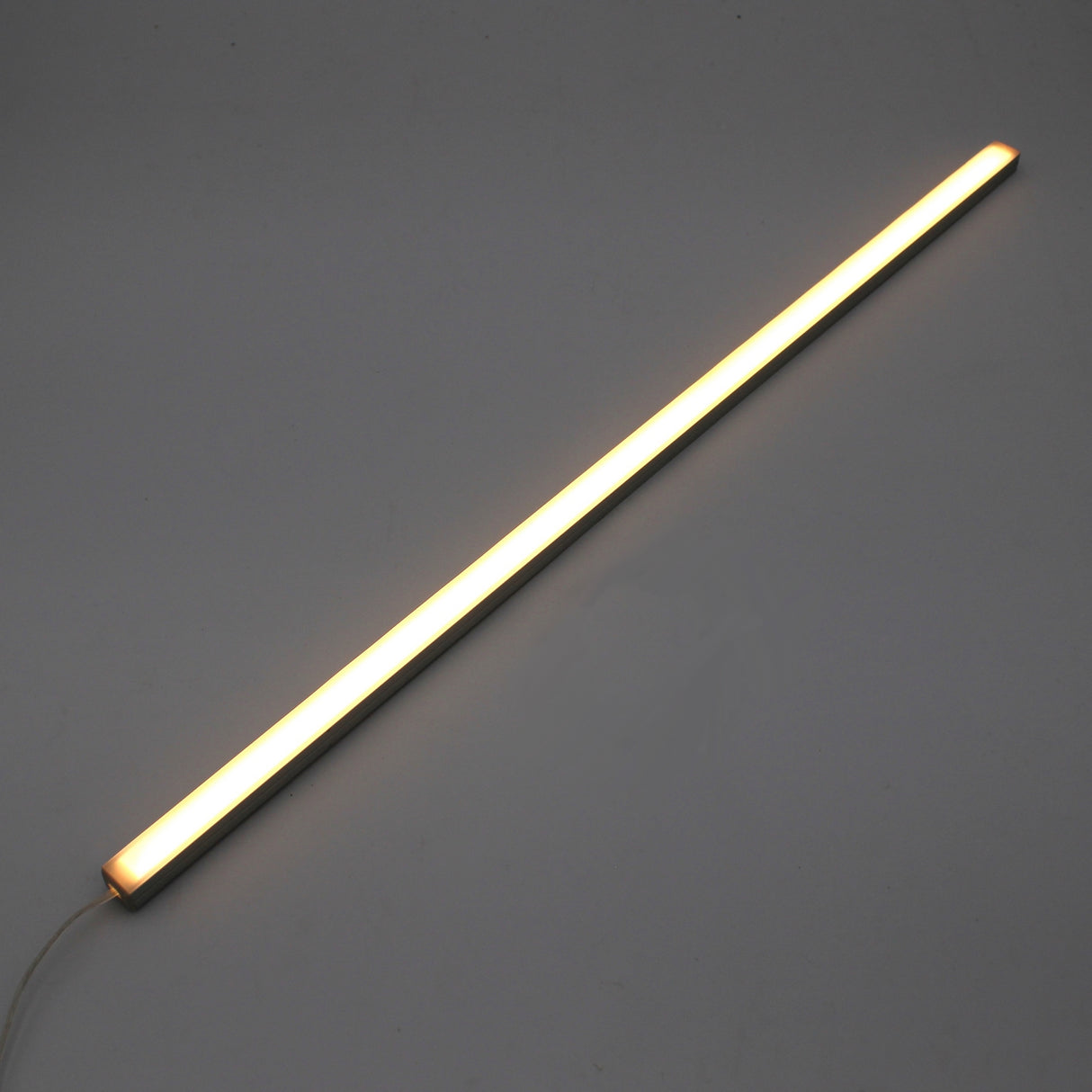

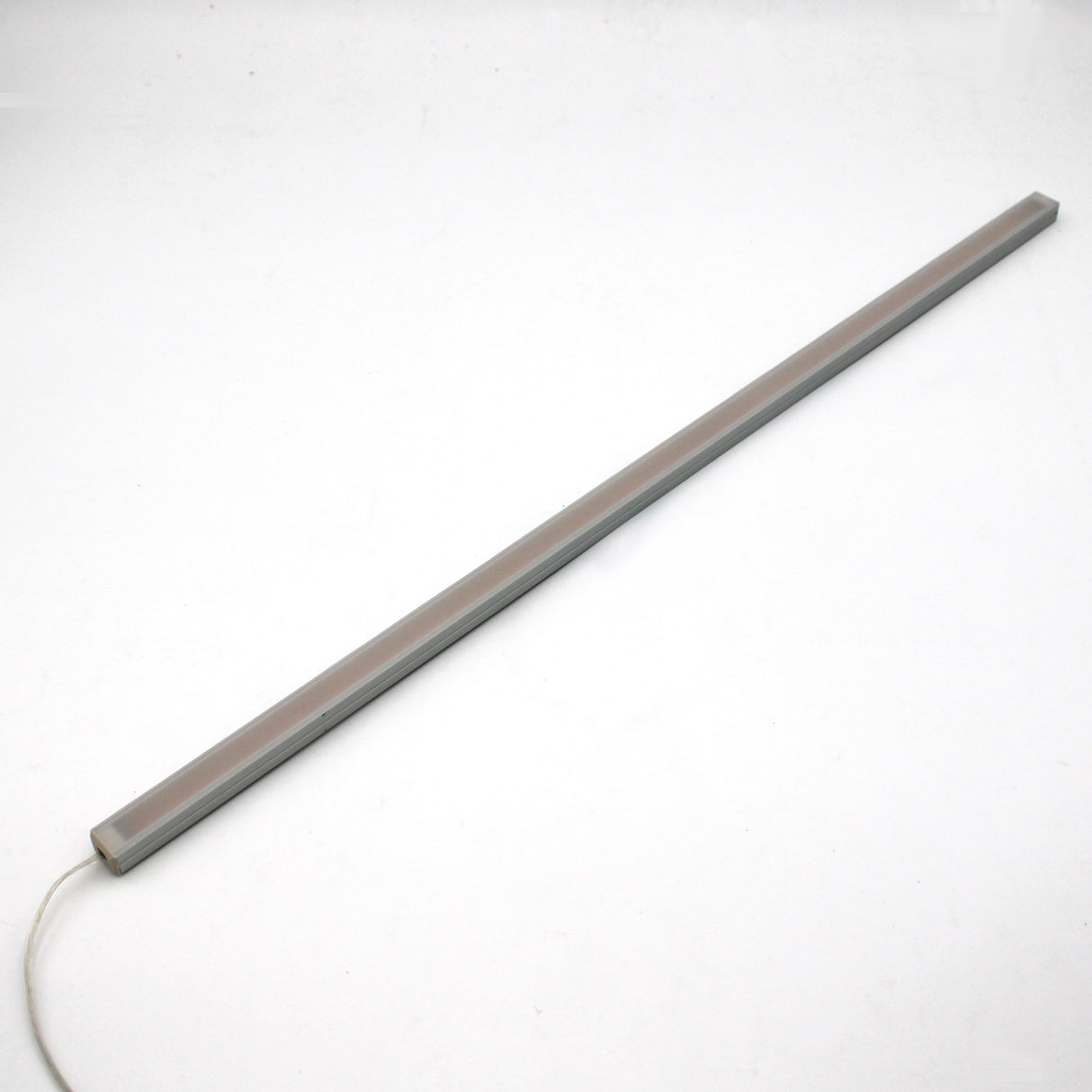

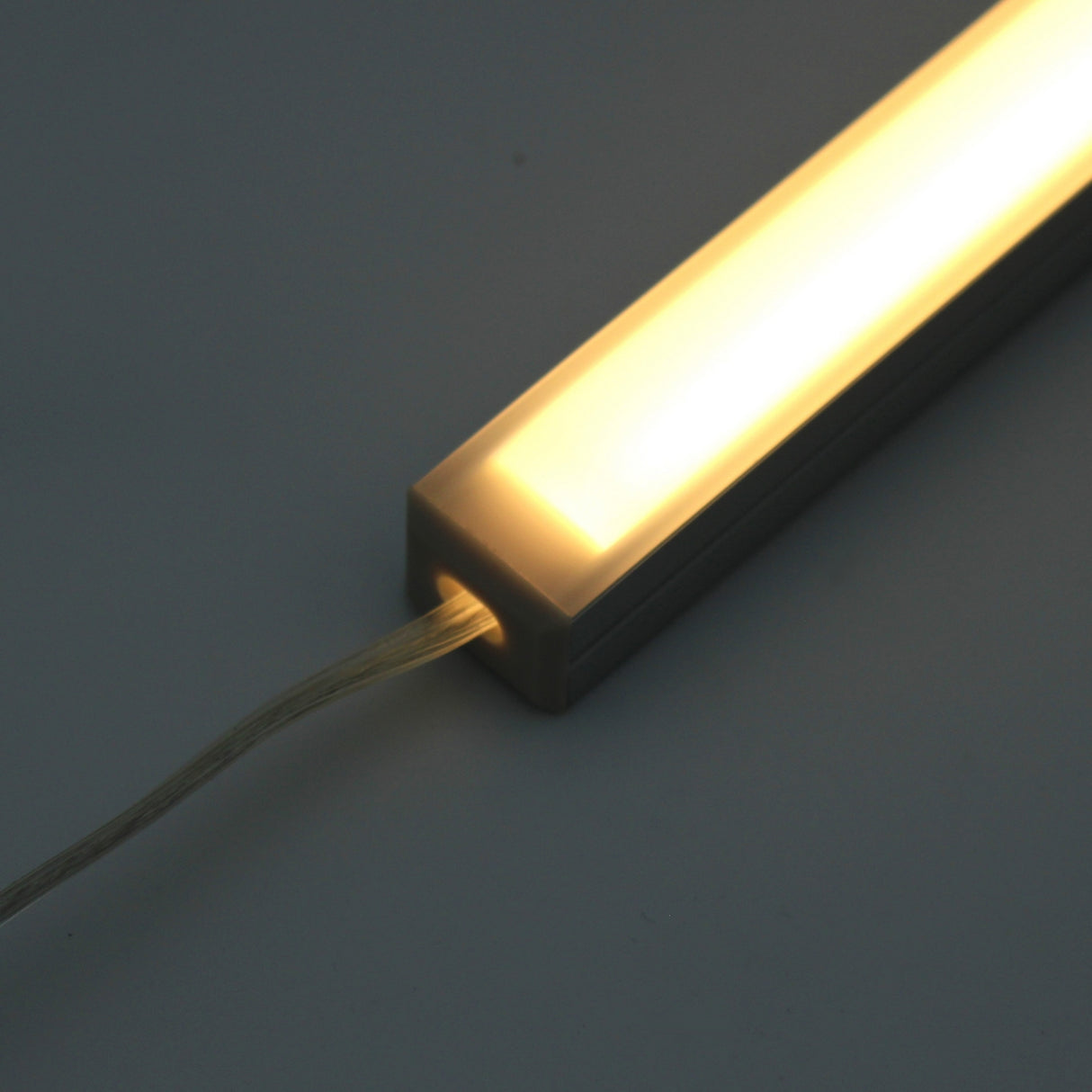

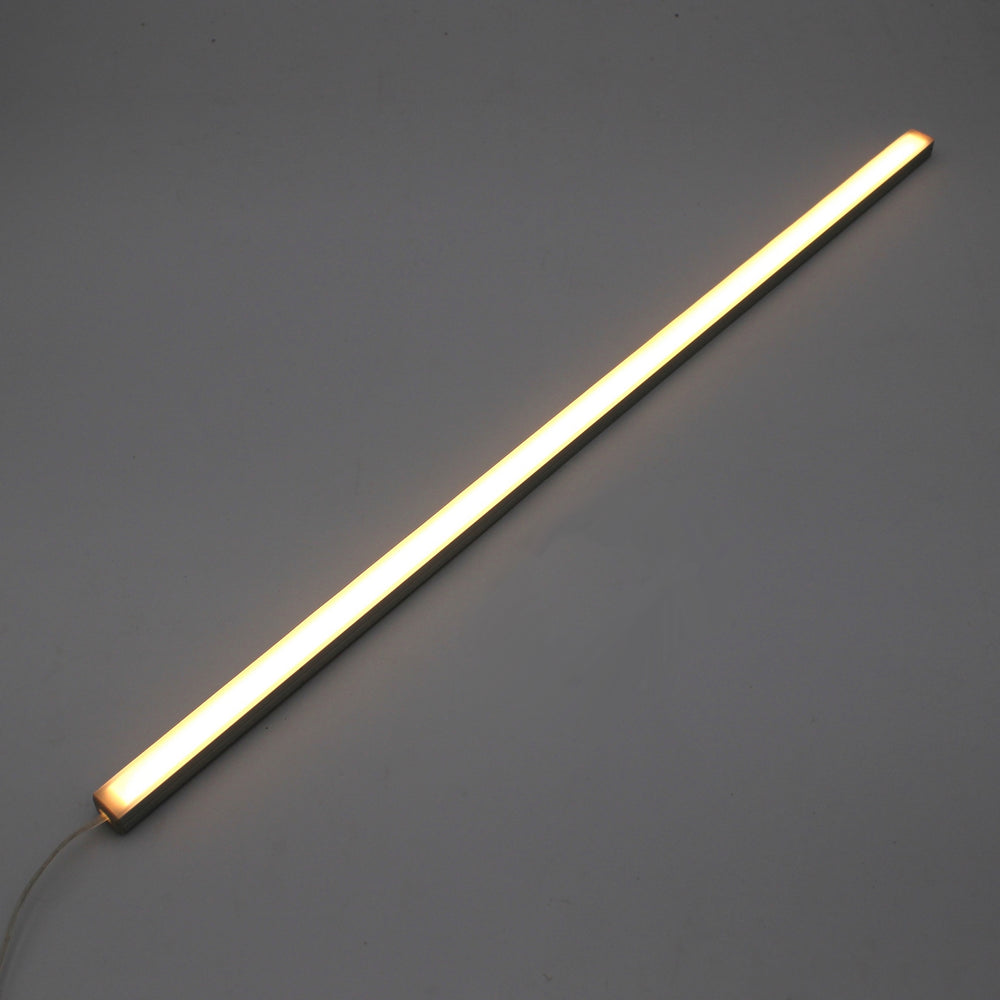

The photos show the 2800K color temperature version. The fixture shown in the photos of an entire unit is the 615mm (24") length.

General specifications

Light color: White, choice of color temperatures
Dimmable: Yes, via dimmable driver or LED controller
Expected lifetime: >50,000 hours
Suitable locations: Indoor, outdoor

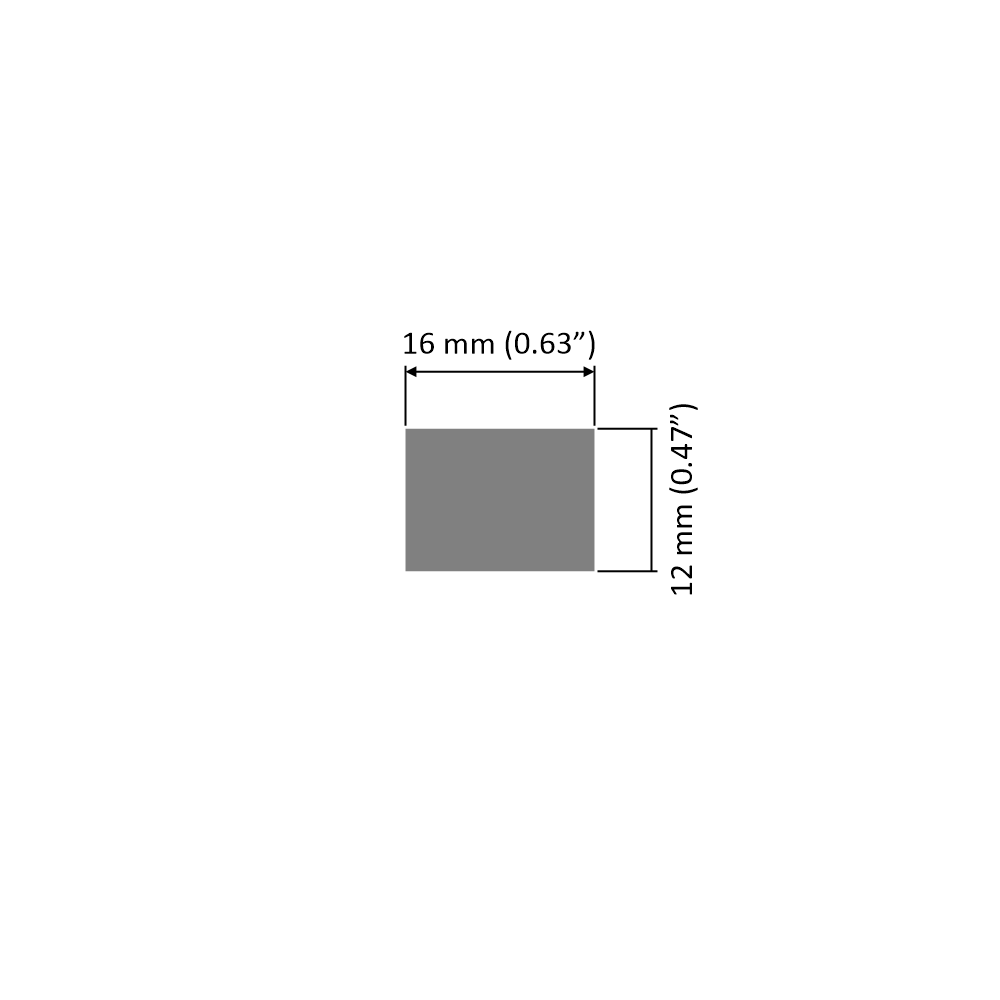

Width: 16mm (0.63" or 5/8")
Height: 12mm (0.47" or 1/2")
Mounting: Clips (included; matching color)
Body material: Aluminum
Body color options: Silver, Black (mounting clips come in matching color)
Diffuser color: Opal
Voltage: 24V DC
Wattage: 10 W/m
- 615mm (24"): 6W
- 1m (39"): 10W
- 2m (78"): 20W
Brightness: 721 lm/m – 854 lm/m (depends on color temperature; 4000K is the brightest)
- 615mm (24"): 432 – 512 lm
- 1m (39"): 721 – 854 lm
- 2m (78"): 1,442 – 1,707 lm
CRI: 90+
Max combined length of a single chain of fixtures: 10m (33ft)
Lead wire: 3ft (1m). Option of lead wire on one side (for single fixture or end of series) or on both sides (for connecting fixtures in series).
