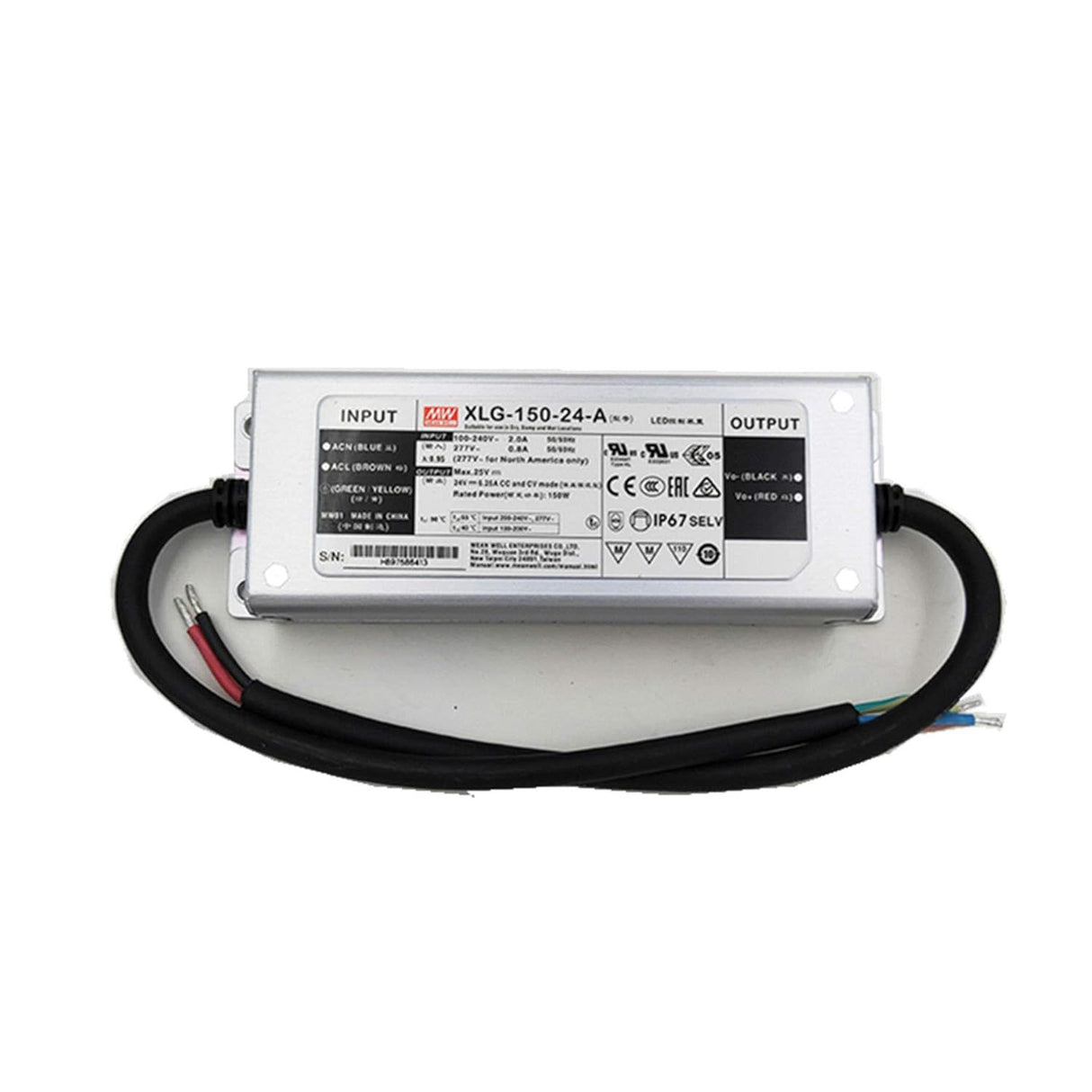

Compact IP67 Waterproof LED Driver ~ Meanwell XLG Series

SKU LED-MW-XLG-200W-24V-A
Original price - Original price
Original price
-
Current price
Shipping notes

Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.

LED power supply only ~ LED strip and all other components sold separately

Description

The Meanwell XLG series LED drivers are compact, high performance power supplies with a constant power mode design which means that they can operate at 70-100% of their current range while delivering their full rated power output. A wide-range AC input capability means that they can be installed in almost any supply system and comprehensive UL 8750 and IEC 61347 approvals (amongst others) ensure they meet project & code requirements.

These compact waterproof LED power supplies are ideal for lighting applications from stage lighting, to fishing lighting, to horticulture lighting and can also be used as a DMX power supply.

General specifications

  • Input voltage: 100-305V AC
  • Rated output:
    • XLG-75-24: 24V DC (SELV) / 1.55-3.1A / 74.4W
    • XLG-200-24: 24V DC (SELV) / 4.15-8.3A / 199.2W
  • Dimensions:
    • XLG-75-24: 140 x 63 x 32mm (5.51 x 2.48 x 1.26")
    • XLG-200-24: 199 x 63 x 35.5mm (7.84 x 2.48 x 1.40")
  • Connection type: Flying leads
  • Electrical protections: Short-circuit (SCP), Over-voltage (OVP) & Over-temperature (OTP)
  • Surge protection: 6kV Line-Earth & 4kV Line-Line
  • Environmental protections: IP67 waterproof
  • Working temperature: -40°F to 194°F (-40°C to 90°C)
  • Certifications: IEC/EN 61347 independent control gear, ANSI/UL 8750 LED Equipment
  • Warranty: 5 years

Downloads

Important notes

  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
