It might look clean at first, but using the wrong silicone sealant around your LED strips can silently destroy your entire lighting installation.
🚫 The Hidden Risk in Your LED Install
General-purpose silicone sealants — especially acid-cure (acetoxy) types — release acetic acid during curing. You’ll notice the vinegar smell, and unfortunately, so will your LEDs.
That acid eats into copper pads, corrodes solder joints, and damages the phosphor coatings on LEDs. The result?
- Premature failure of LED strips
- Flickering or dead segments
- Greenish or blackened copper traces
- Discoloration or fading of the light output
✅ Use the Right Sealant: Neutral-Cure Only
Always choose a neutral-cure, non-corrosive silicone that is safe for electronics. In our store we carry GE Advanced Silicone 2 (100% silicone, neutral cure) and Permatex RTV Silicone Adhesive (sensor-safe).
What to look for:
- Neutral cure: does NOT release acid while curing
- Safe for LED PCBs, solder joints, and connectors
- UV and weather resistant
- Stays flexible over time
🎨 Don’t Mess with Light Output
Even with the right type of silicone, do not apply it directly over the LED chips.
- Silicone over LEDs can distort the light beam
- It may discolor slightly with heat or UV, causing unwanted color shifts
- Leads to “patchy” lighting appearance over time

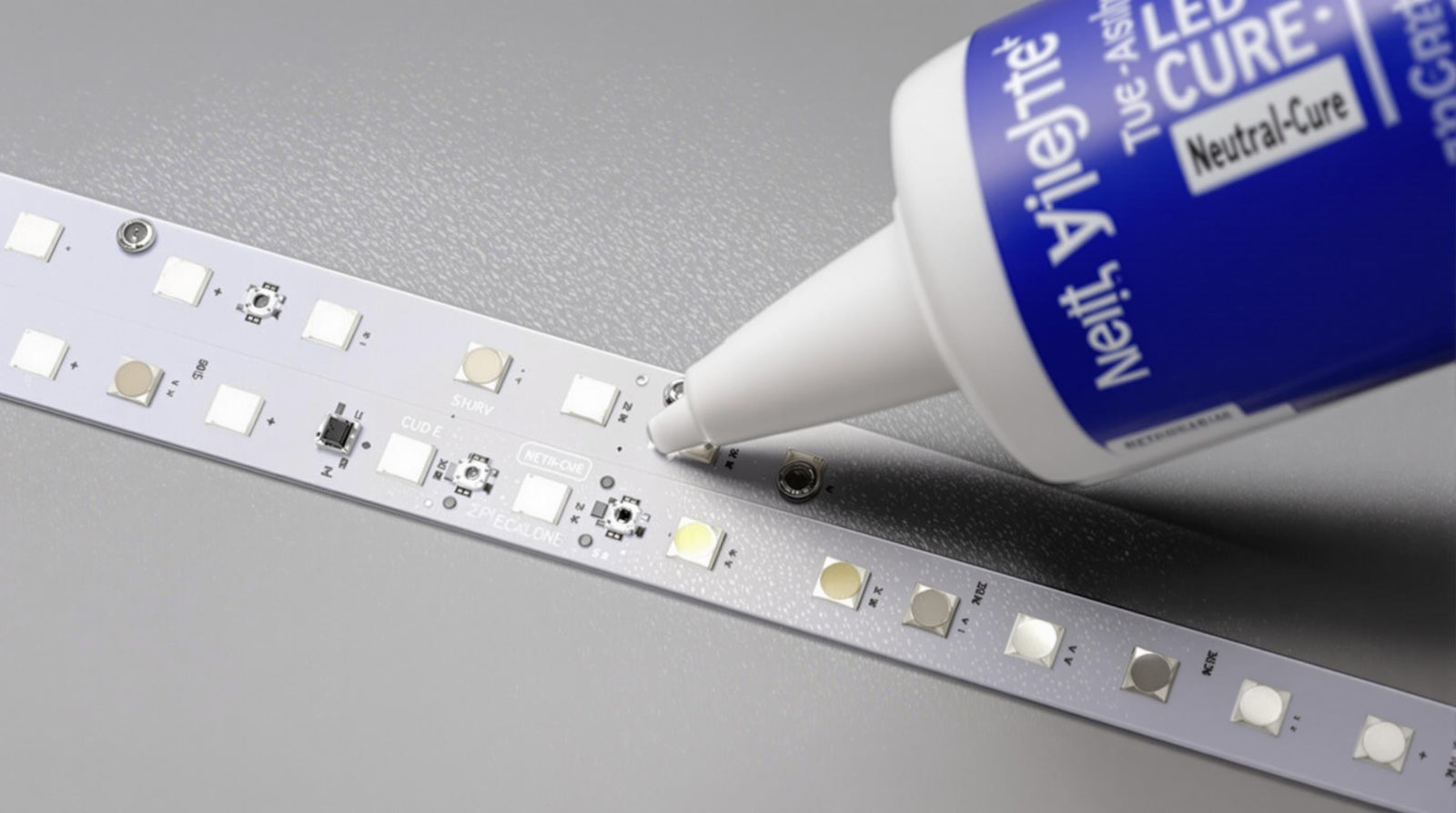

Use silicone only to seal endcaps, profile covers, and solder joints — not across the LED emitters themselves.
🧯 What Happens When You Use the Wrong Sealant?
We’ve seen many failed installations due to acid-cure silicone:
- Rapid oxidation and corrosion on exposed contacts
- Severe discoloration or “ghosting” around LED points
- Breakdown of PCB materials under sealant
- Failure within weeks when exposed to humidity
🛡️ Pro Installer Tip
“If it smells like vinegar — keep it away from your LEDs.”
Always double-check the label. If it says “acid-cure” or “acetoxy,” do NOT use it.
📦 Where Safe Silicone Should Be Used
- Outdoor LED signage (endcaps and junctions)
- Profile end seals
- Water-resistant enclosures
- RV, marine, and commercial washdown zones
🛒 Recommended Products
GE Advanced Silicone 2 and Permatex RTV Silicone Adhesive are available from Wired4Signs USA — neutral cure and electronics-safe.
