12 modules Samsung chip 3 Edge-lit High power LED module (12V) ~ Sunflower Series

12 modules Samsung chip 3 Edge-lit High power LED module (12V) ~ Sunflower Series

Original price - Original price
Original price
-
Current price
SKU LED-SUN-3LED-12v-3100K

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

12 LED modules only ~ power supplies, controllers, drivers, and all accessories are sold separately

Made in Korea  ROHS Compliant  Samsung LED Chips

Description

12 modules Samsung chip 3 Edge-lit High power LED module ~ Sunflower Series

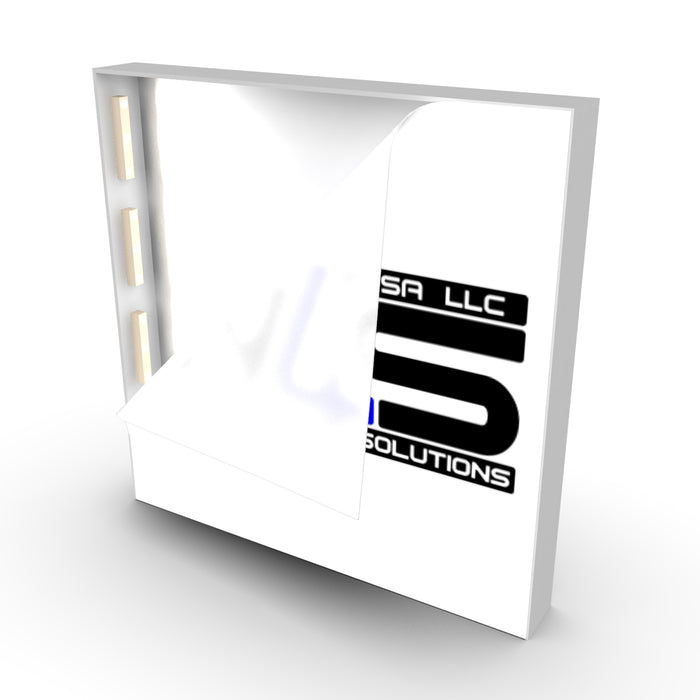

Samsung chip 3 Edge-lit High power LED module (12V) is a lighting solution for double-sided sign cabinets. Sunflower Series was also developed to replace fluorescent tubes in cabinet signs.

These edge-lit LED modules can be used for single or double-sided light cabinets for new or retrofit applications using less modules compared to conventional LED lighting solutions. Additionally, Sunflower Series Samsung Modules have a world-class asymmetric optical lens and reliable SSC power LED chips that produce even light across a sign face.

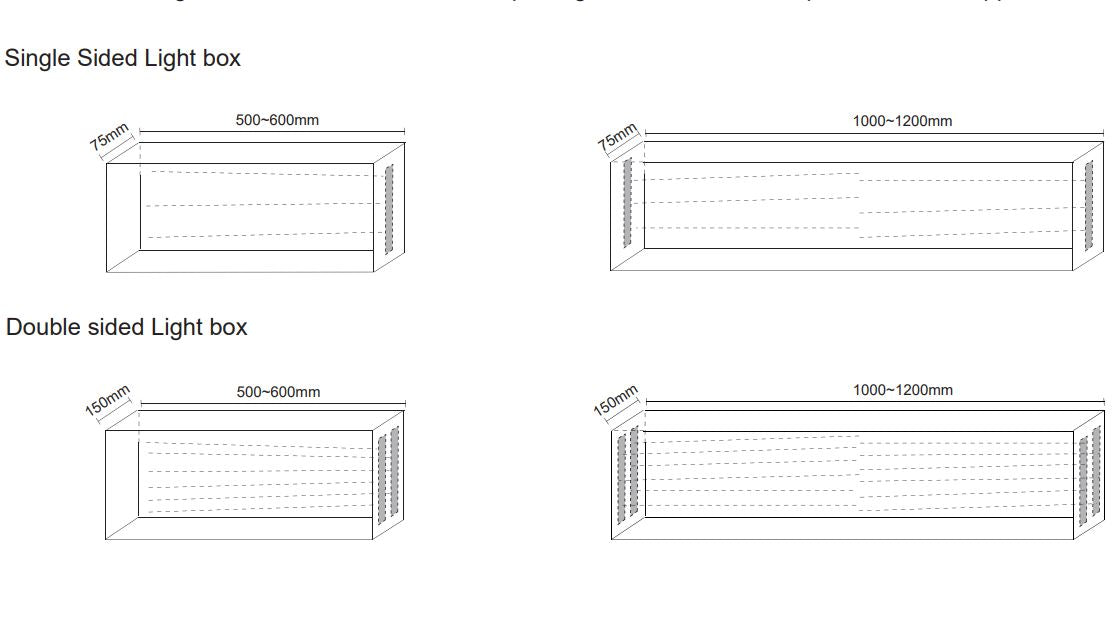

Lightbox Edge Illumination Guide

  • Single-sided cabinet Sign with a depth of 2.95Inch require
    • Modules on one edge to illuminate a cabinet sign up to a width of 23Inch.
    • Modules on opposite edges to illuminate a cabinet sign width of between 23inch and 47Inch
  • Double-sided cabinet Sign with a depth of 5.9Inch require
    • Modules on one edge to illuminate a cabinet sign up to a width of 23Inch.
    • Modules on opposite edges to illuminate a cabinet sign width of between 23inch and 47Inch

General specifications per module

  • Supplied in boxes of 12 Modules (2x6 module strings)
  • Samsung LED chip
  • Made in Korea
  • Current dissipation : 700mA
  • Beam Angle: 50°x9°
  • Power Consumption: 9W per module
  • Quantity for maximum connection in series: 6 modules (18 LED chips)
  • Operating power: DC 12V
  • IC Chip-on-board current regulation
  • IP65: Prevents water & dust penetration
  • LED Lamp: High Power SSC LED Lamps
  • Lens: PMMA
  • Cover: ABS
  • Body: AL Extrusion
  • PCB: FR-4
  • Lead wire: AWG18
